Motor and Drive System
Throttle 30-25
30

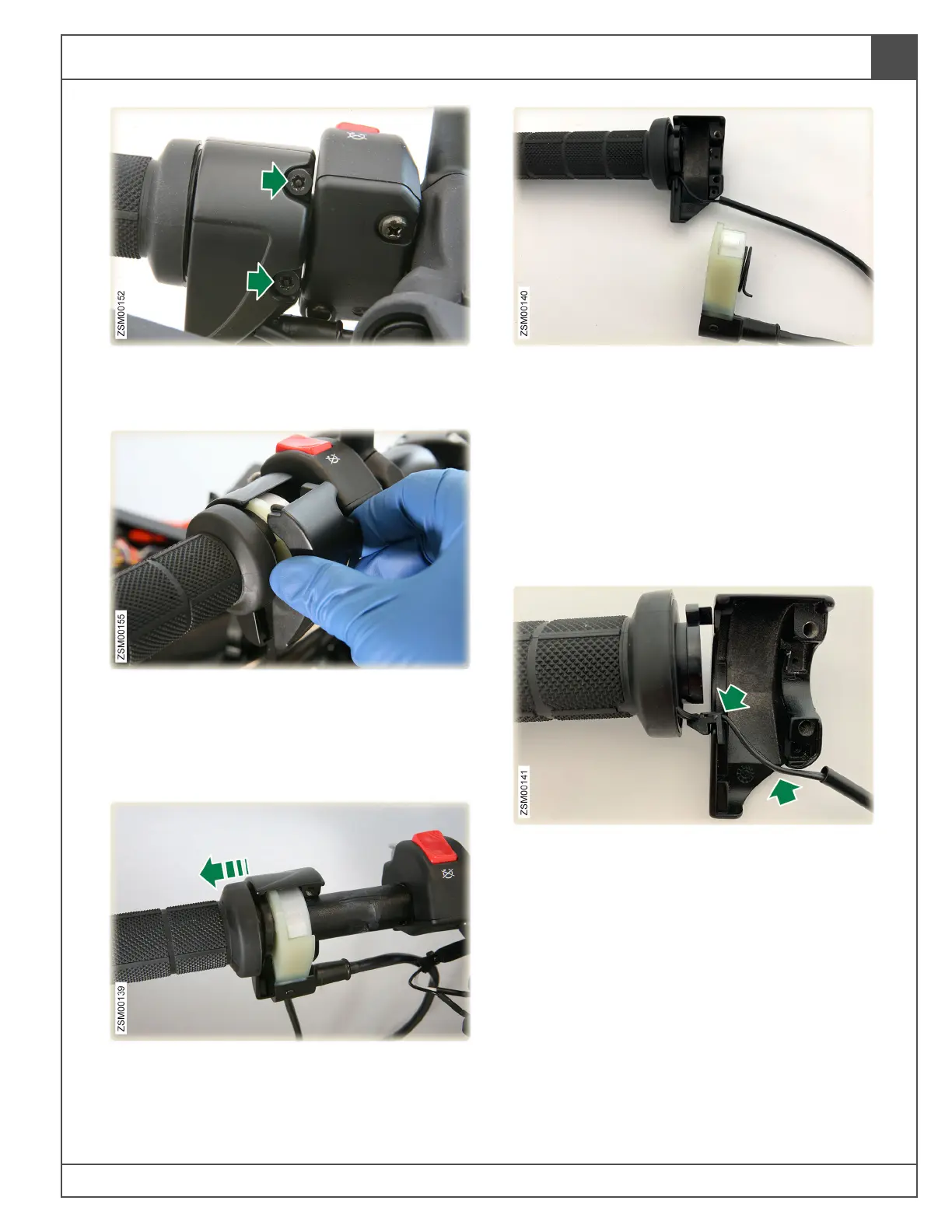

19. Remove bolts (x2) securing the throttle’s rear
cover to the front cover. Tool: Tamperproof
T25
20. Carefully remove the throttle’s rear cover from
the throttle assembly.
Note: If you’re attempting to keep the throttle
spring from being sprung, do not remove the
throttle’s front cover.
21. Slide the throttle and grip off the end of the
handlebar.
22. Carefully remove throttle assembly from the
throttle assembly cover.
Note: Take note of the position of the spring
on the cover and how the grip assembly
interlocks with the throttle assembly
Installation
1. Installation is the reverse of the removal
procedure, but follow the proceeding steps to
install the throttle spring.
2. If the motorcycle is equipped with heated
grips, place the harness alignment tab into the
slot in the throttle cover.
Note: Make sure the wire harness lead is
routed through the bottom opening in the
throttle cover.
