30-26 Throttle
Motor and Drive System
30

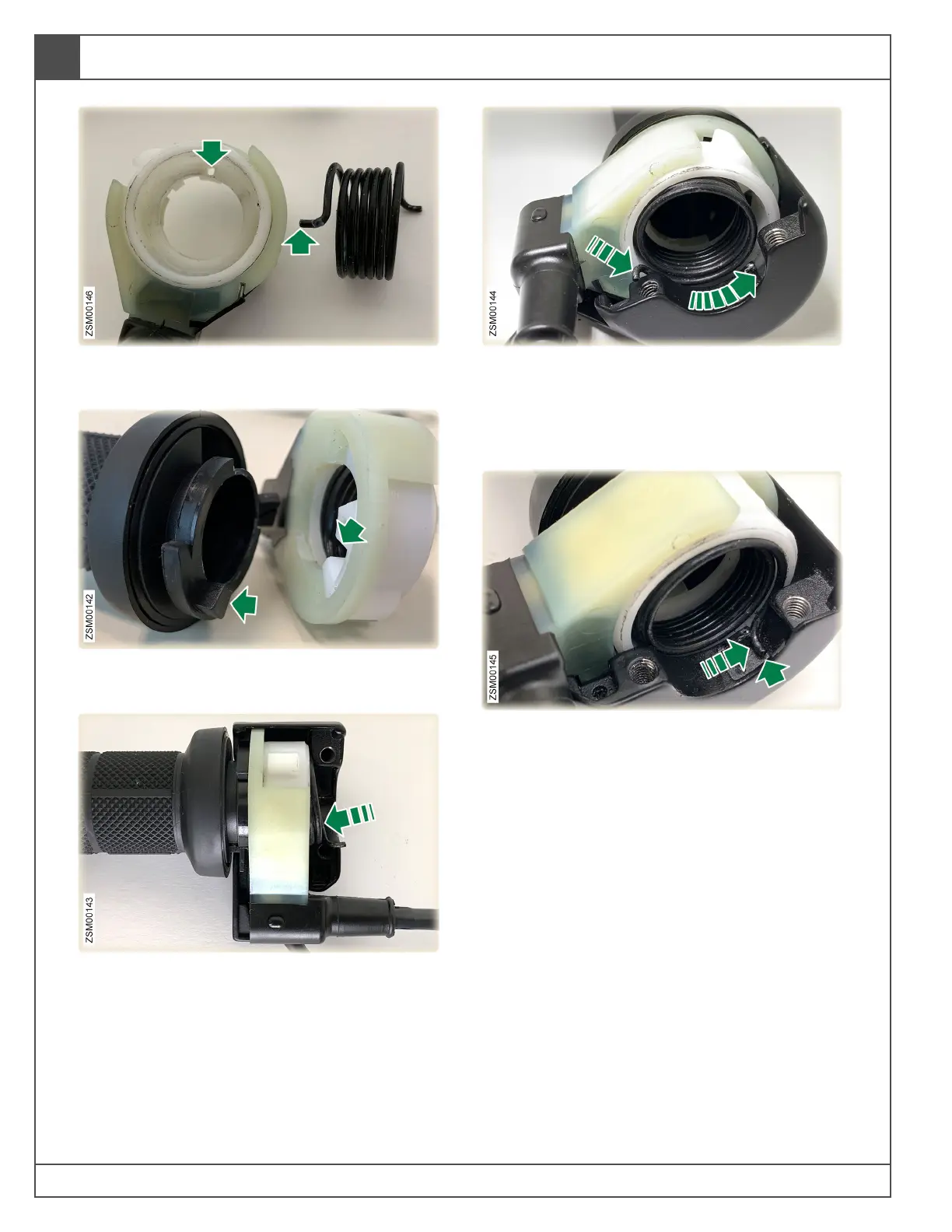

3. Insert throttle spring tang into the hole in the
throttle mechanism.
4. Align the peg on the throttle grip with the
notch of the throttle mechanism.
5. Place the aligned throttle grip and throttle
mechanism (with spring inserted) into the
throttle cover. Push spring into throttle
mechanism, so the assembly will sit down
inside the cover.
6. While holding the throttle mechanism from
popping out of the throttle cover, use a
non-marring trim removal tool to slide the
spring tang until the tang drops into the slot.
Tool: Non-marring trim removal/pry tool.
7. A properly installed throttle return spring will
be preloaded as shown. Take care not to pull
the assembly out of the throttle cover during
installation.
