Motor and Drive System
Controller 30-29
30

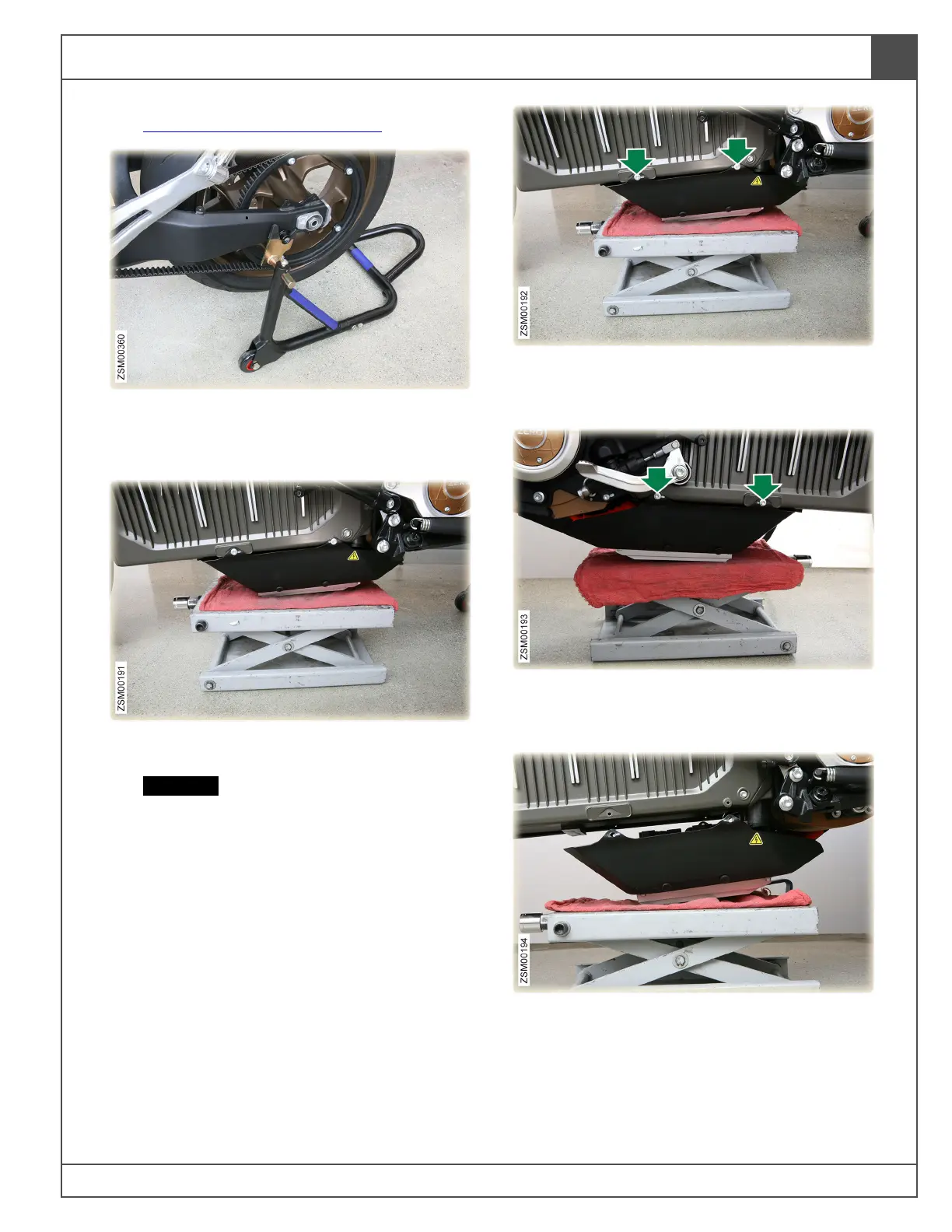

6. Remove left and right inner side fairings. See
Side Fairings (Inner)
, page 60.19.
7. Safely support the motorcycle by using a
motorcycle stand.
8. Remove lower body panel.
9. Support controller with jack. Tool: scissor
jack.
CAUTION: Do not lift motorcycle by jacking
up the controller. Damage to the controller
and the controller carrier will occur.
10. Remove bolts (x2) securing controller carrier
to power pack, left side. Tool: T25. Torque:
3lb-ft (4 Nm).
11. Remove bolts (x2) securing controller carrier
to power pack, right side. Tool: T25. Torque:
3lb-ft (4 Nm).
12. Lower the scissor jack approximately 1 inch
below the controller and carrier assembly.
Note: The controller assembly will not freely
slip off the power pack, but should be
supported to reduce strain on the high voltage
components.
