30-30 Controller
Motor and Drive System
30

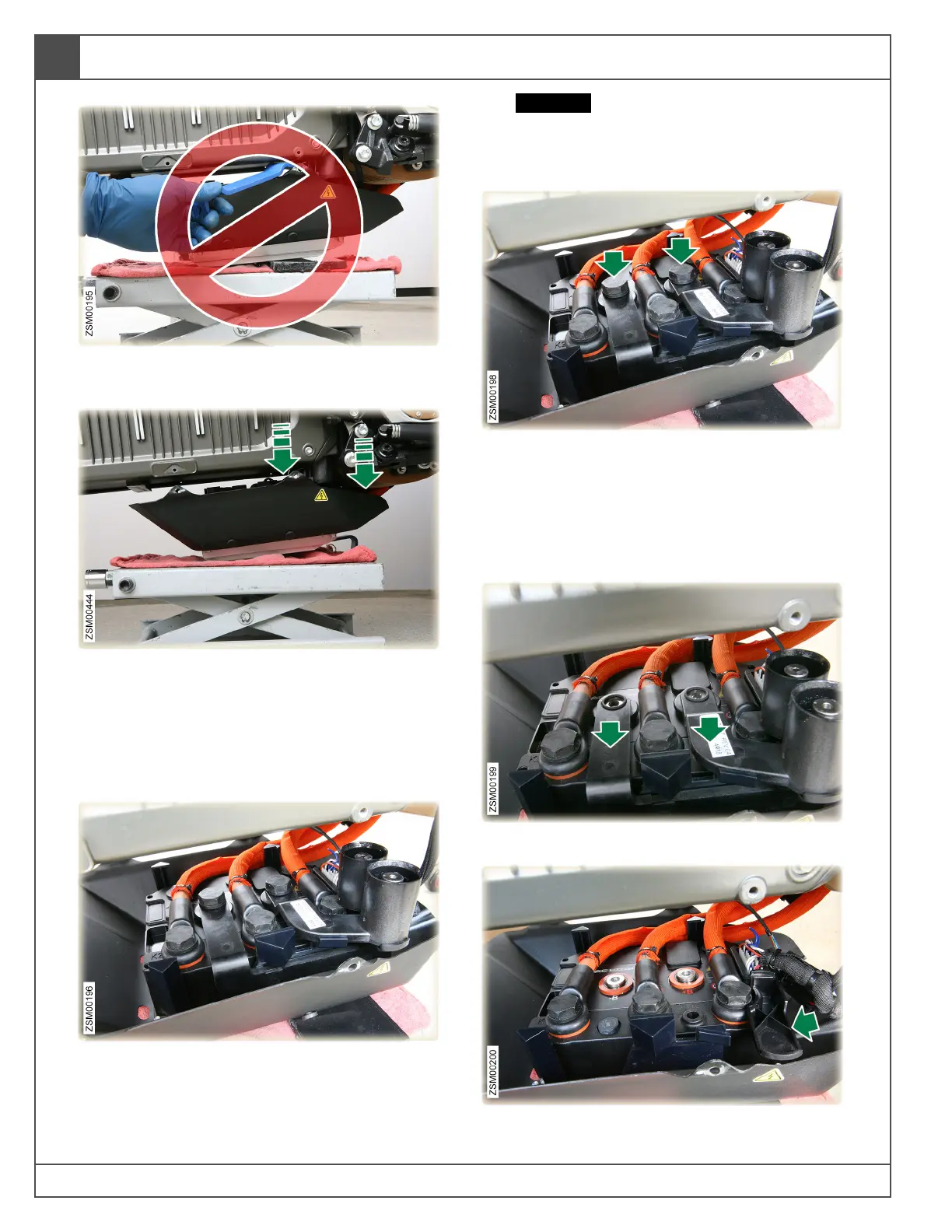

13. Do not pry on any part of the controller
assembly.
14. Pull the controller assembly straight down. It
will require a lot of wiggling and pulling to
disengage the busbars from the radsock
cups.
Note: This process will take a lot of effort and
a few minutes to perform.
15. With the controller assembly released from the
power pack, lower the jack to gain access to
the phase lead terminal bolts.
CAUTION: Use jack to control the distance
the controller assembly drops. Do not allow
the controller assembly to hang and stress
the signal harness.
16. Remove terminal bolts (x2) securing busbars
(x2) to the top of the controller. Discard
O-rings (x2). Tool: 22mm 6-point socket.
Torque: 9 lb-ft (12 Nm).
Note: Replace sealing O-rings upon
installation.
17. Remove busbars (x2).
18. Remove busbar guide.
