30-34 Controller
Motor and Drive System
30

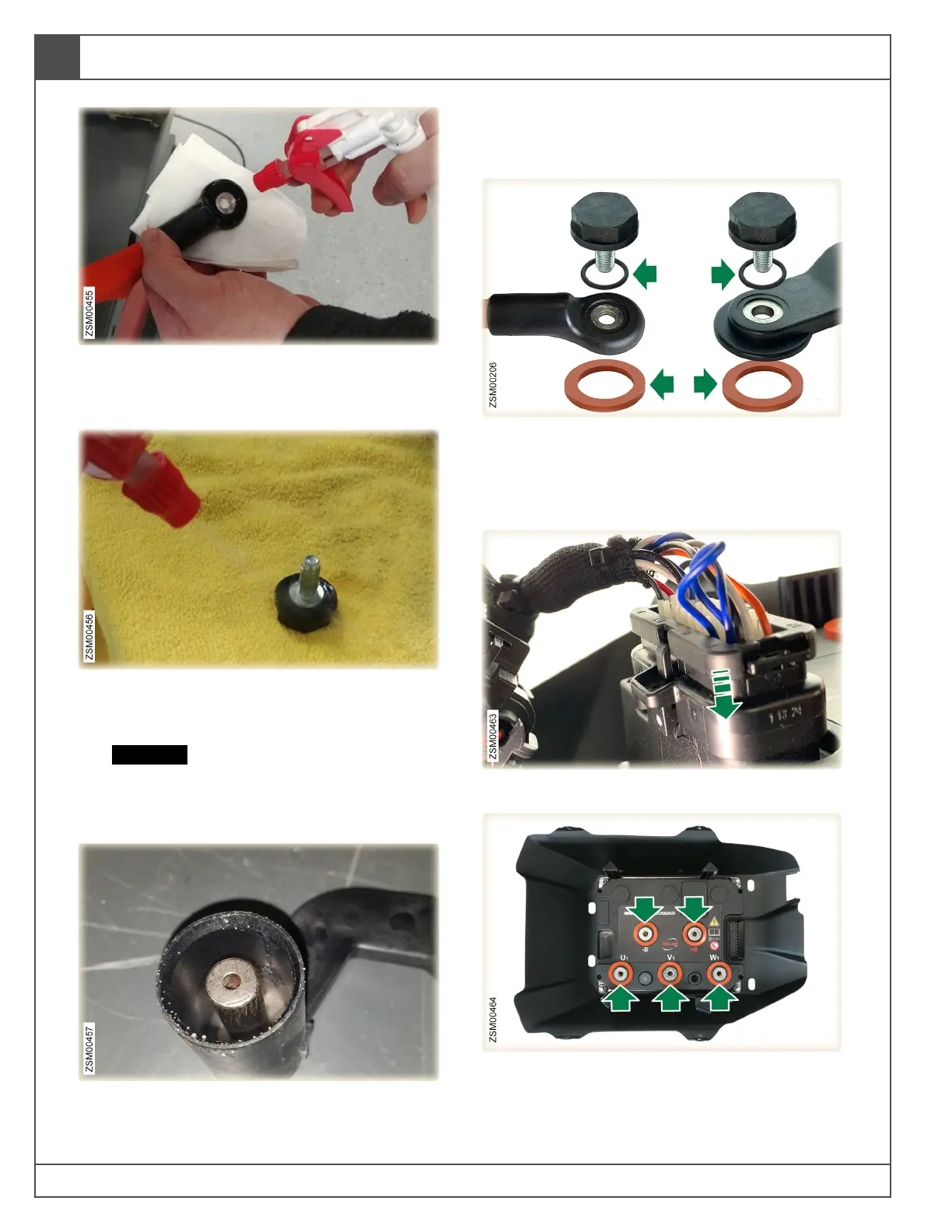

8. Thoroughly clean all terminal connection
surfaces of the phase leads (x3) and busbars
(x2) with ISO70 and paper towels.
9. Thoroughly clean the threads and mating
surface of the terminal bolts (x5) with ISO70
and paper towels.
CAUTION: Clean terminal bolts (x5)
completely. DO NOT COAT THE TERMINAL
BOLTS PRIOR TO INSTALLATION! Replace
any damaged or worn terminal bolts.
10. Confirm that the radsock cups (x2) do not
contain debris.
Installation
1. Installation is the reverse of the removal
procedure.
2. Replace orange terminal gaskets and terminal
bolt O-rings prior to installation.
3. Place controller assembly on scissor jack
under the power pack.
4. Connect controller signal harness connector.
5. Place new phase lead gaskets (x5) on the
controller terminals.
