Zero SR/S User Manual

Motor and Drive System
Controller 30-33
30

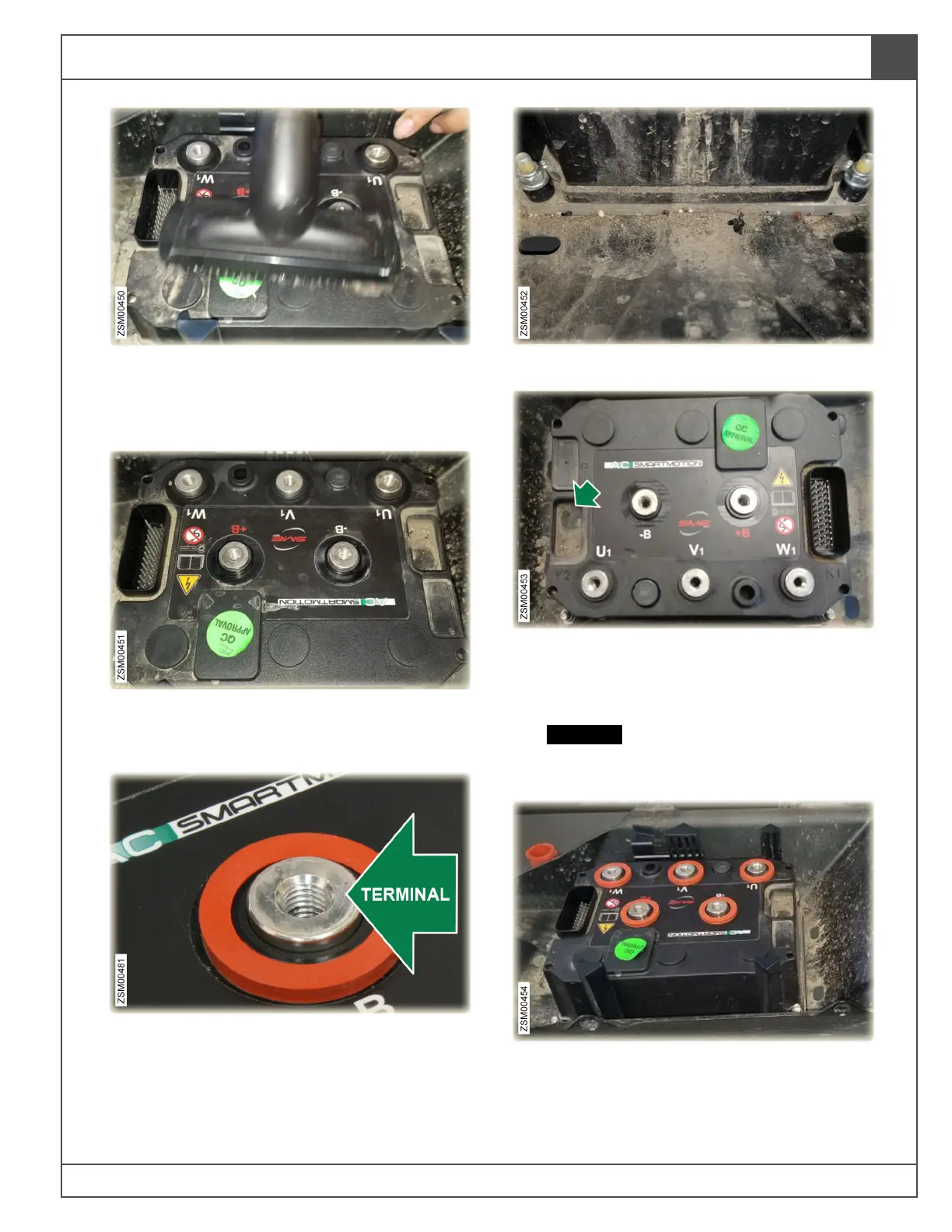

2. Use a shop vacuum with a brush head
attachment to remove as much dust and
debris as possible from the top of the
controller.
3. This is an example of a vacuumed controller,
prior to wiping with ISO70 prepped paper
towels.
4. All controller terminals (x5) must be clean and
in good condition (no severe pitting or
evidence of arcing).
5. Vacuum out the debris around the controller.
6. Apply ISO70 (isopropyl rubbing alcohol 70%)
to a paper towel and clean the top of the
controller. It is not critical to remove all the dirt
inside of the pocket (see arrow).
CAUTION: Do not spray the ISO70 directly
on the controller or terminals. Spray ISO70
on a paper towel and wipe the area clean.
7. Install new orange terminal gaskets (x5) on the
controller terminals.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
