26. Remove controller carrier from controller.
Cleaning Connectors Before Installation
Note: Prior to installing the controller, check the
following connector locations and clean if
necessary. Clean with a microfiber cloth and/or

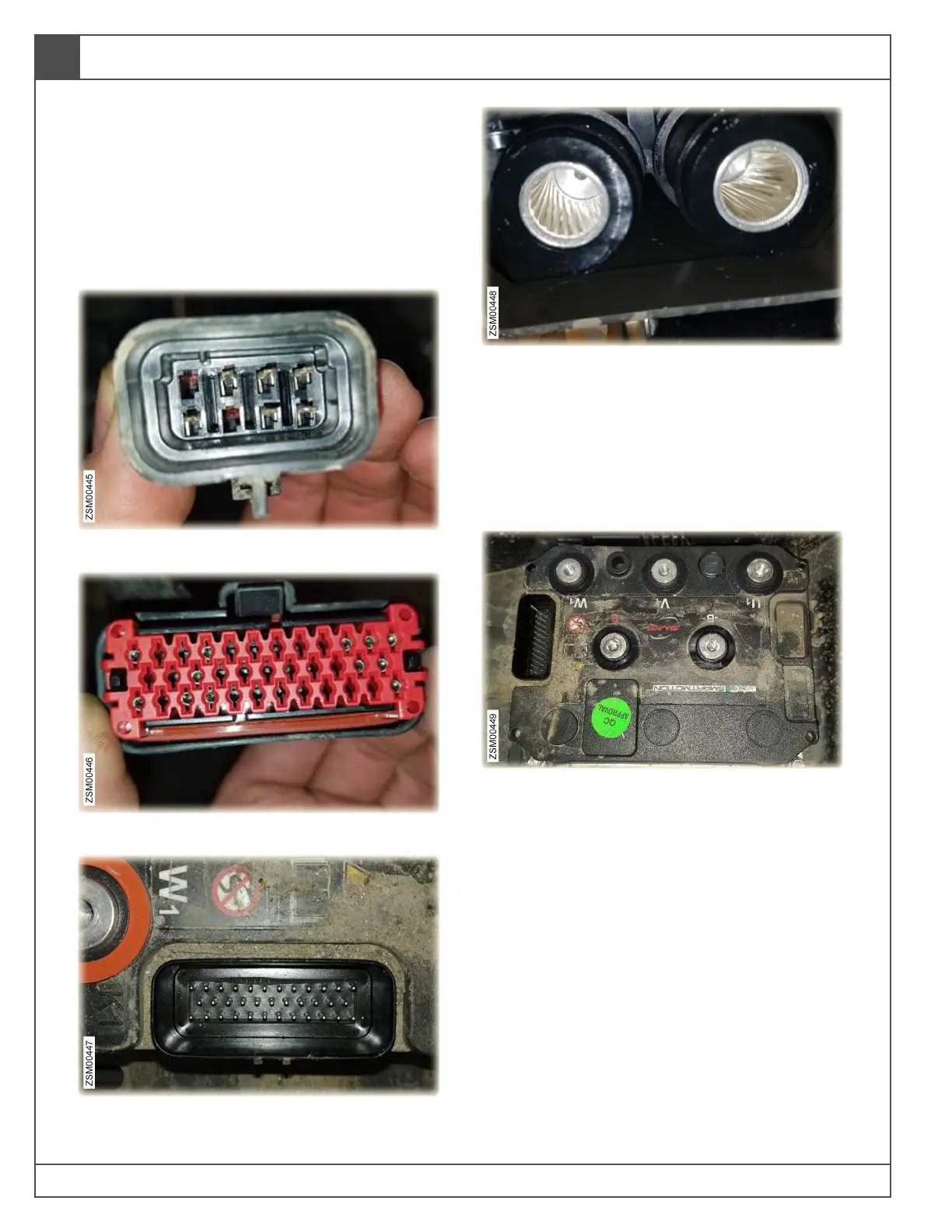

cotton swabs. The following images show areas
qualified as clean.
1. Inside the 8-pin connector.
2. Inside the 35-pin connector.
3. Inside the controller’s 35-pin socket.
4. Inside the power pack’s radsock connectors.
Cleaning Controller Before Installation
Note: Prior to reinstalling the existing controller, use
the following methods to clean its surfaces. Clean
with ISO70 (isopropyl rubbing alcohol 70%), paper
towels, and a vacuum cleaner.
1. Place controller off to the side of the
motorcycle. This prevents debris from falling
inside of the busbar radsocks and 35-pin
connector socket during disassembly.
Remove the orange terminal gaskets from the
terminals.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
