30-46 Rear Sprocket
Motor and Drive System
30

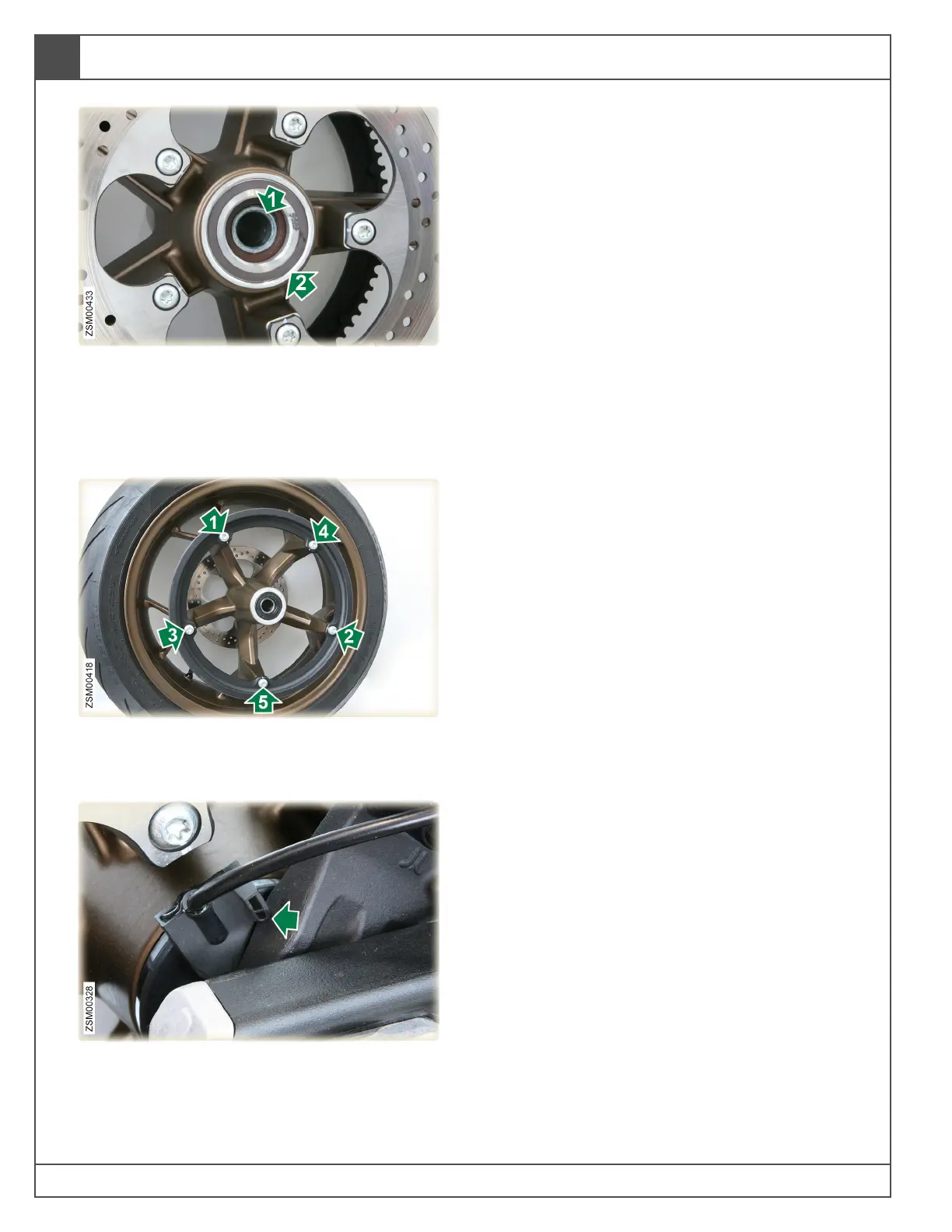

3. On the rotor-side of the rear wheel, inspect the
condition of the wheel bearing (#1) and the
ABS magnet ring (#2). Replace if necessary.
Note: The bearing is a one-time use parts. If
removed, the part will need to be replaced.
4. Install bolts (x5) securing the rear sprocket to
the rear wheel. Tool: T40. Torque (in
sequence shown): 26 lb-ft (35 Nm).
5. When installing the WSS sensor, make sure
the alignment tab is positioned against the top
edge of the rear brake bracket as shown.
