Motor and Drive System
Rear Sprocket 30-45
30

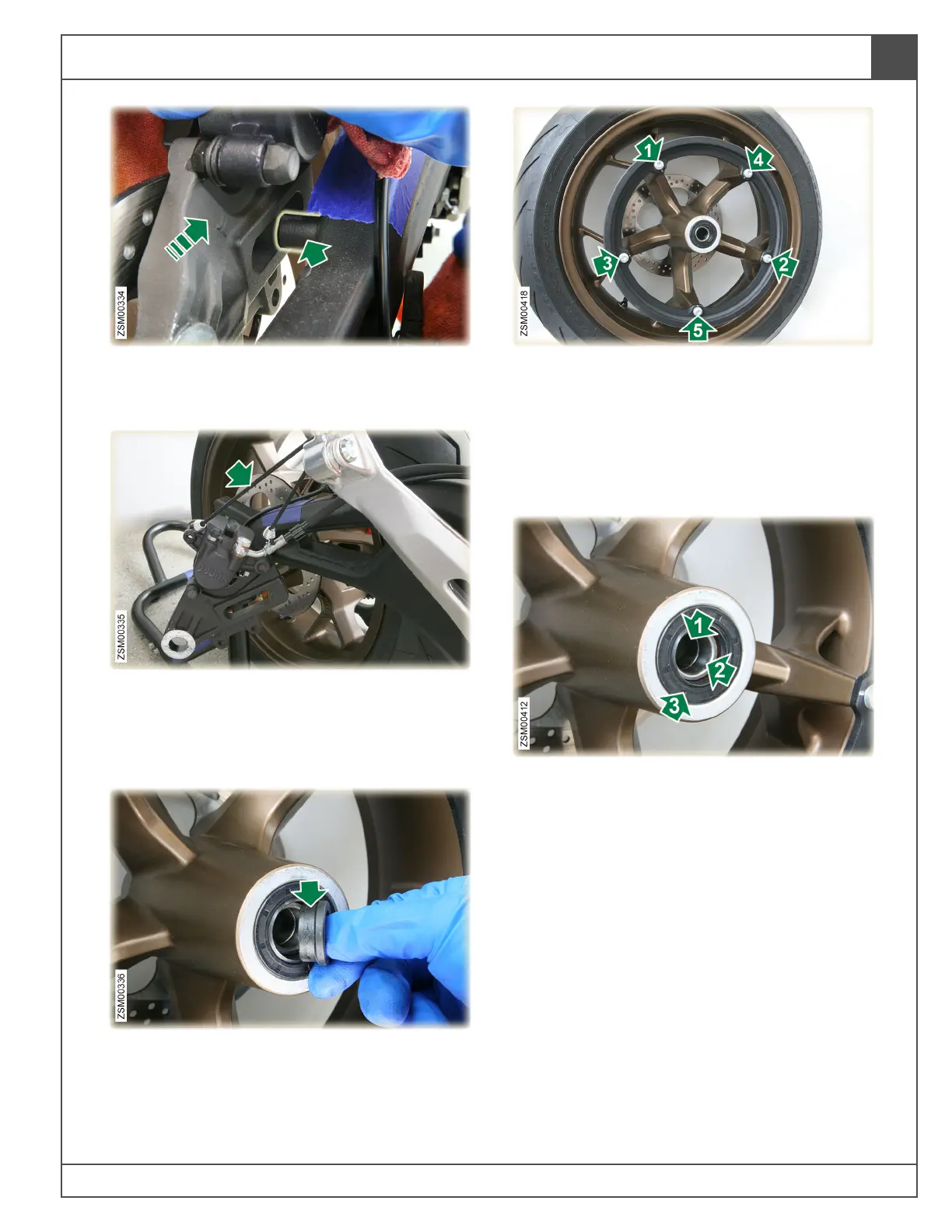

14. Slide rear caliper assembly toward wheel and
slide caliper bracket off of the bracket
alignment pin.
15. Tie caliper up to the foot peg bracket.
Note: Make sure the brake caliper is hung up
and not straining the brake hose.
16. Roll the rear wheel out of the swing arm.
17. Remove plastic bushing from left side
(sprocket side) of the wheel.
18. Remove bolts (x5) securing the brake rotor to
the rear wheel. Tool: T45. Torque (in
sequence shown): 26 lb-ft (35 Nm).
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
2. On the sprocket-side of the rear wheel, inspect
the condition of the inner (#1) and outer (#2)
bearings and the seal (#3). Replace if
necessary.
Note: The bearings and seal are one-time use
parts. Every part removed, will need to be
replaced.
