40-4 Wheel Speed Sensor (WSS)
Suspension
40

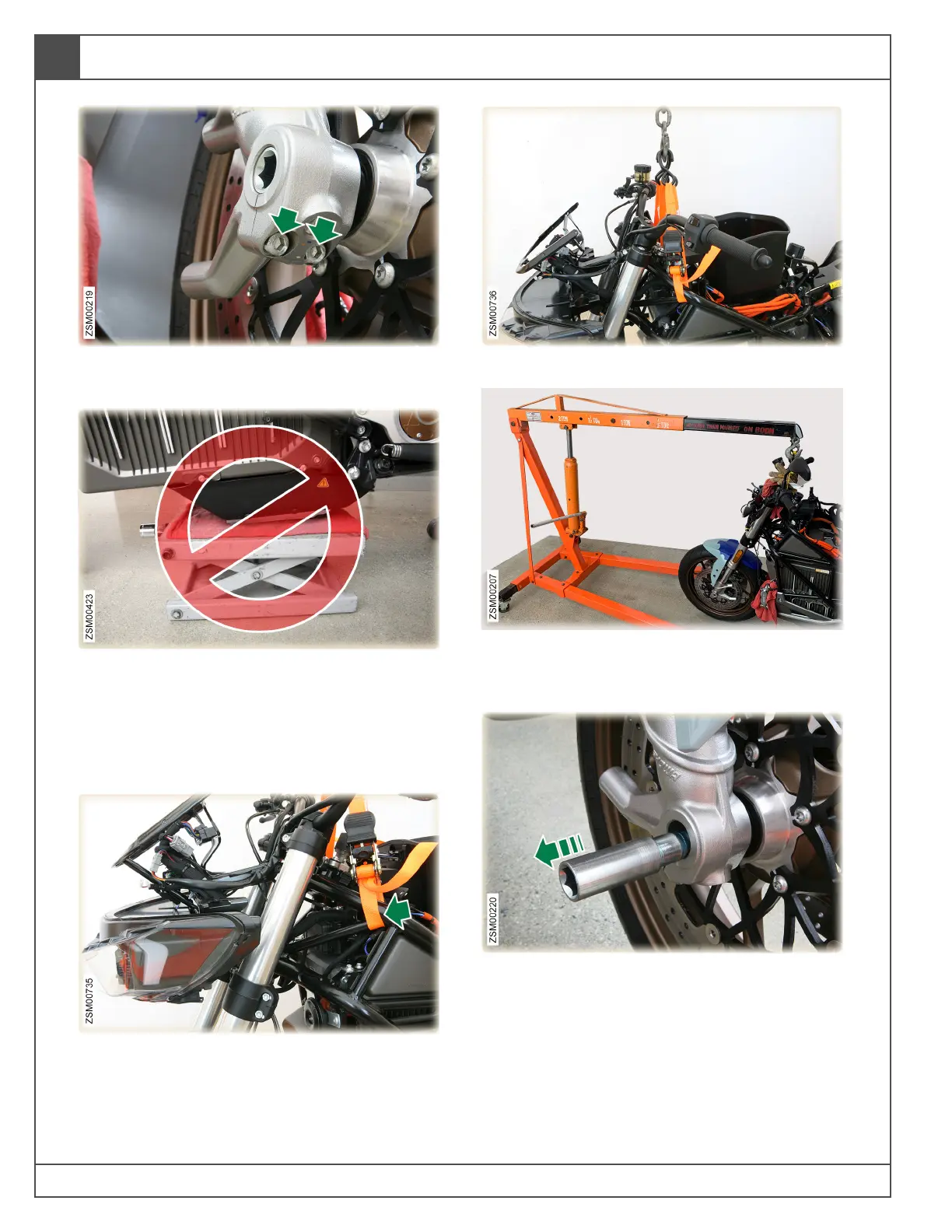

22. Loosen front axle pinch bolts (x2). Tool: 6mm
hex. Torque: 16 lb-ft (22 Nm).
23. DO NOT LIFT THE MOTORCYLE BY
JACKING UP THE CONTROLLER! DO NOT
SUPPORT THE WEIGHT OF THE
MOTORCYCLE BY SUPPORTING THE
CONTROLLER! Doing so, will damage the
controller and other components.
24. Safely loop straps around the motorcycle
frame on the left (shown) and right.
25. Safely hook the ends of the straps to a hoist.
26. Using the hoist, raise the front of the
motorcycle until the front tire is slightly off the
floor.
27. Remove front axle and collect the front wheel.
Tool: 17mm hex bit socket. Torque: 40 lb-ft
(54 Nm).
