Zero SR/S User Manual

Suspension
Wheel Speed Sensor (WSS) 40-3
40

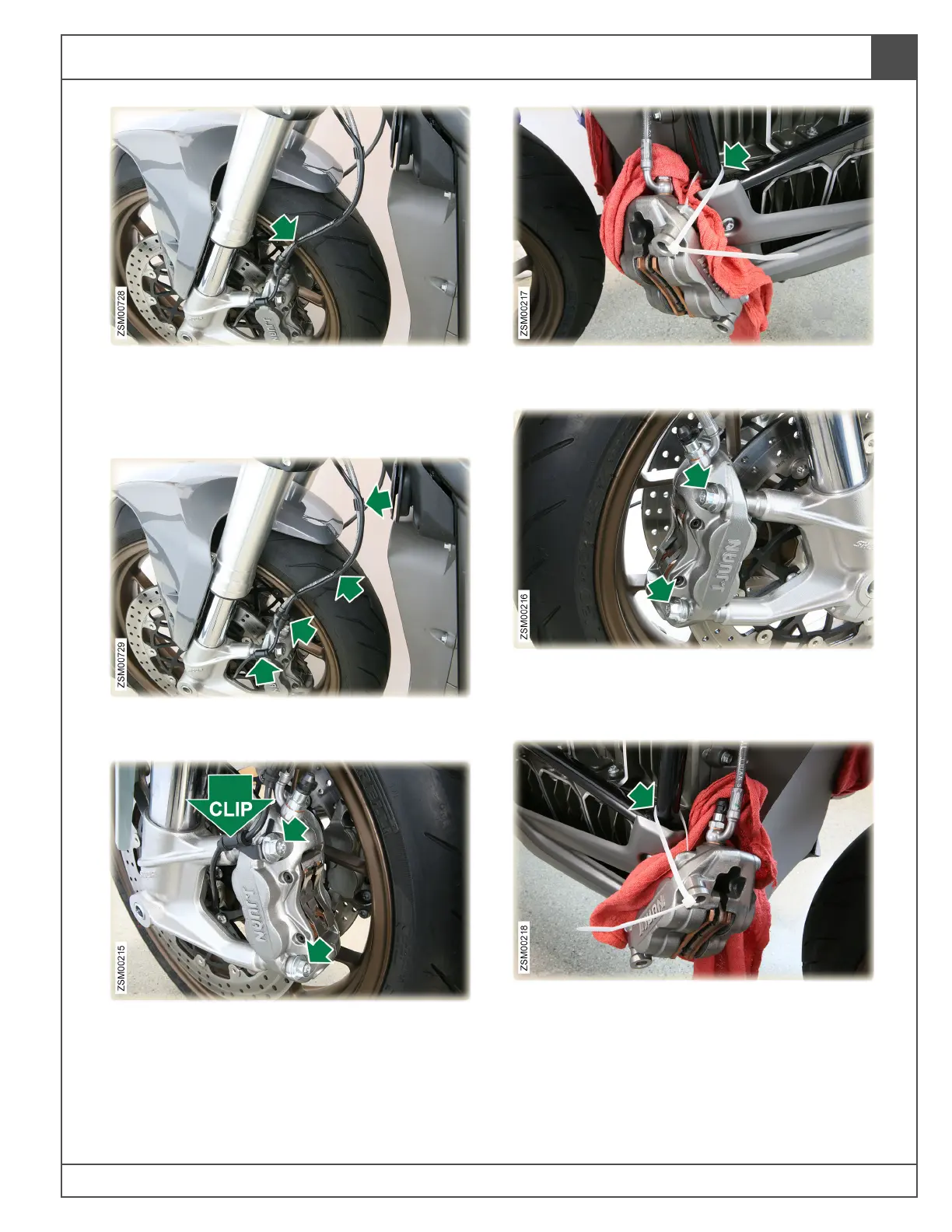

14. Cut cable tie securing the WSS harness to the
left front brake hose.
Note: Replace cable tie during the installation
process.
15. Release WSS harness from the left front brake
hose clips (x4).
16. Remove left front caliper bolts (x2) and collect
retaining clip. Tool: T50. Torque: 30 lb-ft
(41 Nm).
17. Remove left front caliper from rotor.
18. Wrap left front caliper and tie the caliper to the
frame to eliminate strain on the brake hose.
19. Remove right front caliper bolts (x2). Tool:
T50. Torque: 30 lb-ft (41 Nm).
20. Remove right front caliper from rotor.
21. Wrap right front caliper and tie the caliper to
the frame to eliminate strain on the brake
hose.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
