40-18 Rear Suspension
Suspension
40

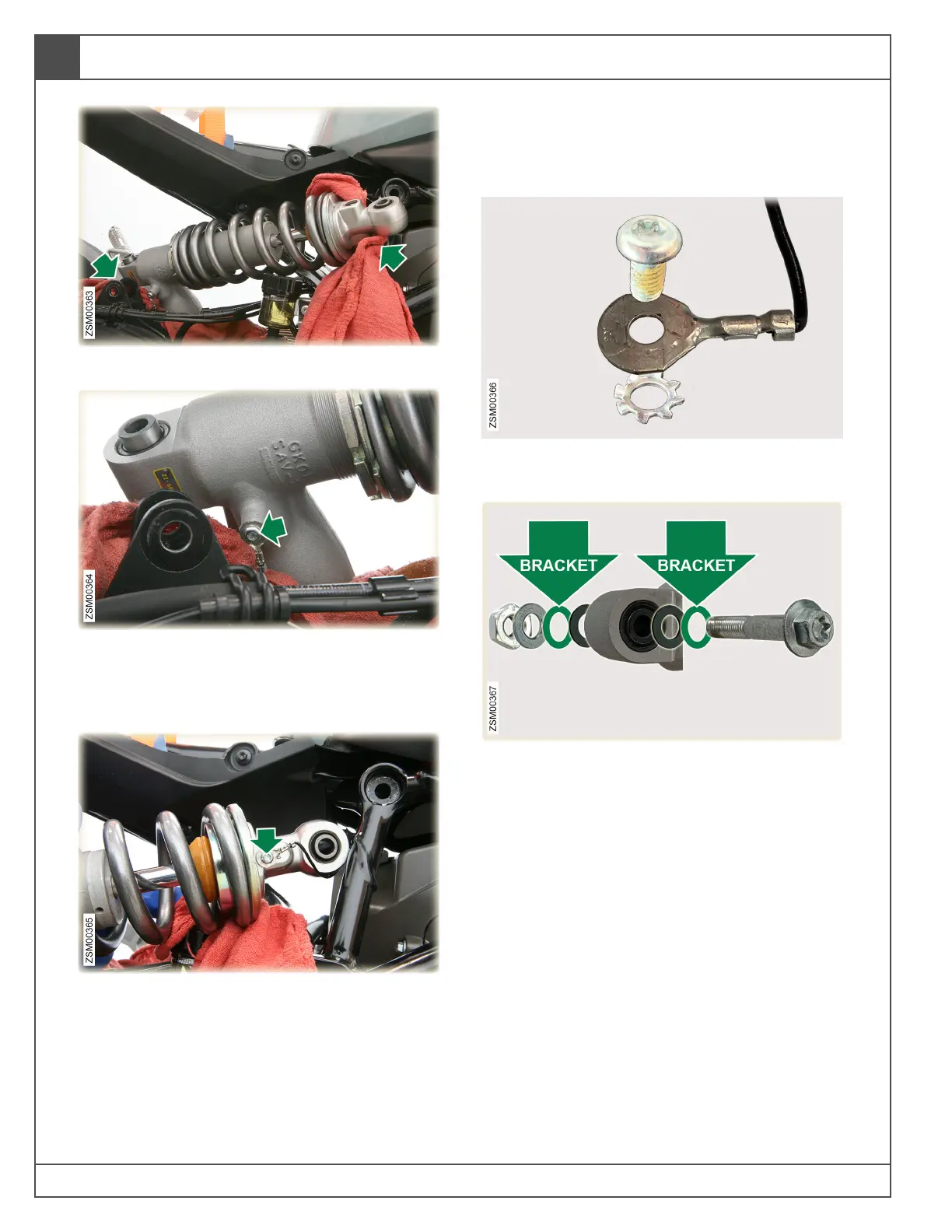

9. Protect painted surfaces with shop cloths.
10. Remove bolt securing ground wire to bottom
of rear shock and collect star washer (between
wire eyelet and shock body). Tool: T20.
Torque: 2 lb-ft (3 Nm).
11. Remove bolt securing ground wire to bottom
of rear shock and collect star washer (between
wire eyelet and shock body). Tool: T20.
Torque: 2 lb-ft (3 Nm).
12. Remove rear shock.
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following
installation note:
2. The order of shock ground wire fasteners:
bolt, wire eyelet, and steel star washer.
3. The order of fasteners and washers to mount
the rear shock to the swingarm.
