Suspension
Rear Suspension 40-25
40

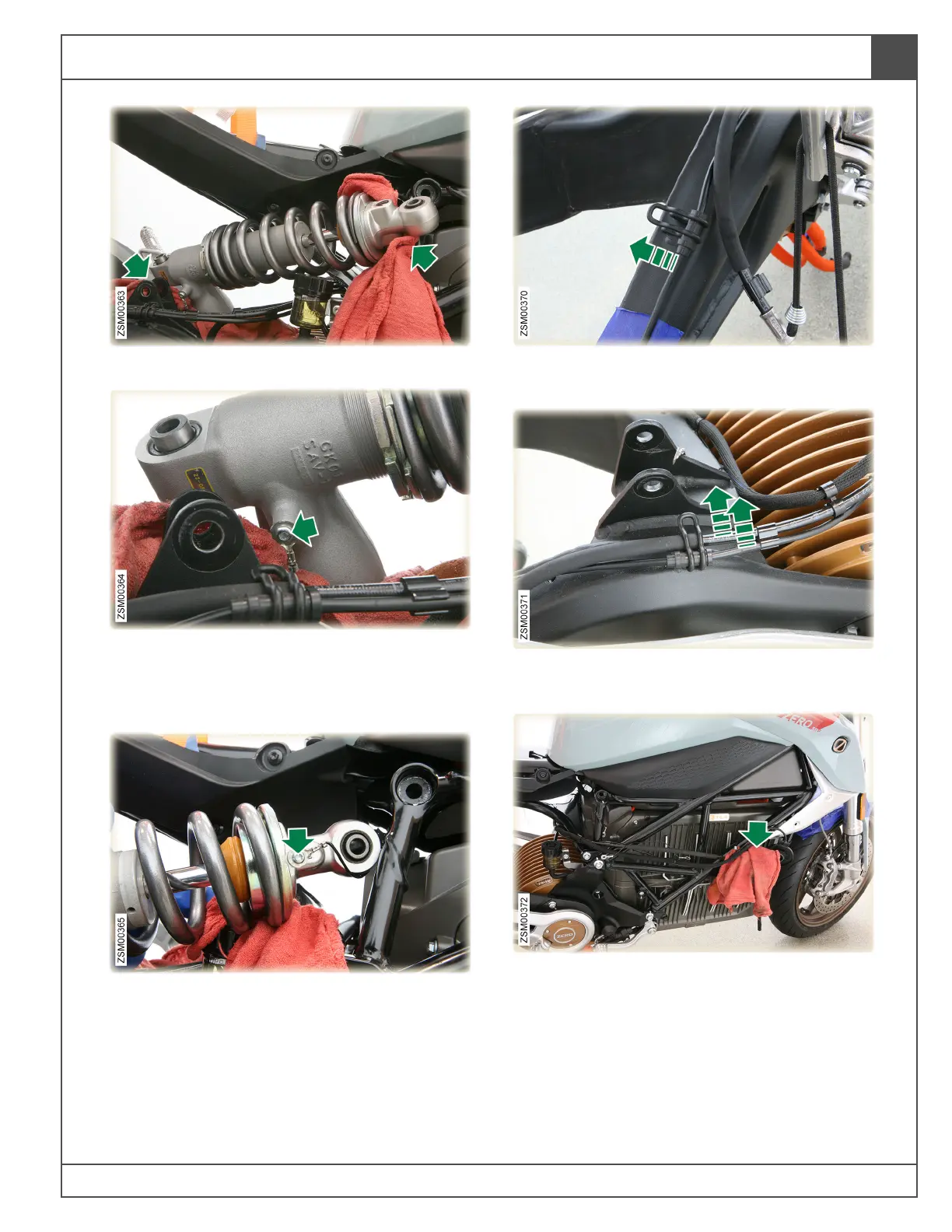

35. Protect painted surfaces with shop cloths.
36. Remove bolt securing ground wire to bottom
of rear shock and collect star washer (between
wire eyelet and shock body). Tool: T20.
Torque: 2 lb-ft (3 Nm).
37. Remove bolt securing ground wire to bottom
of rear shock and collect star washer (between
wire eyelet and shock body). Tool: T20.
Torque: 2 lb-ft (3 Nm).
38. Remove rear shock.
39. Release rear WSS harness from metal
retaining clip.
40. Release brake hose and rear WSS harness
from metal retaining clip.
41. Tie rear brake caliper (wrapped in a rag to
protect painted surfaces) and WSS to the side
of the motorcycle frame.
