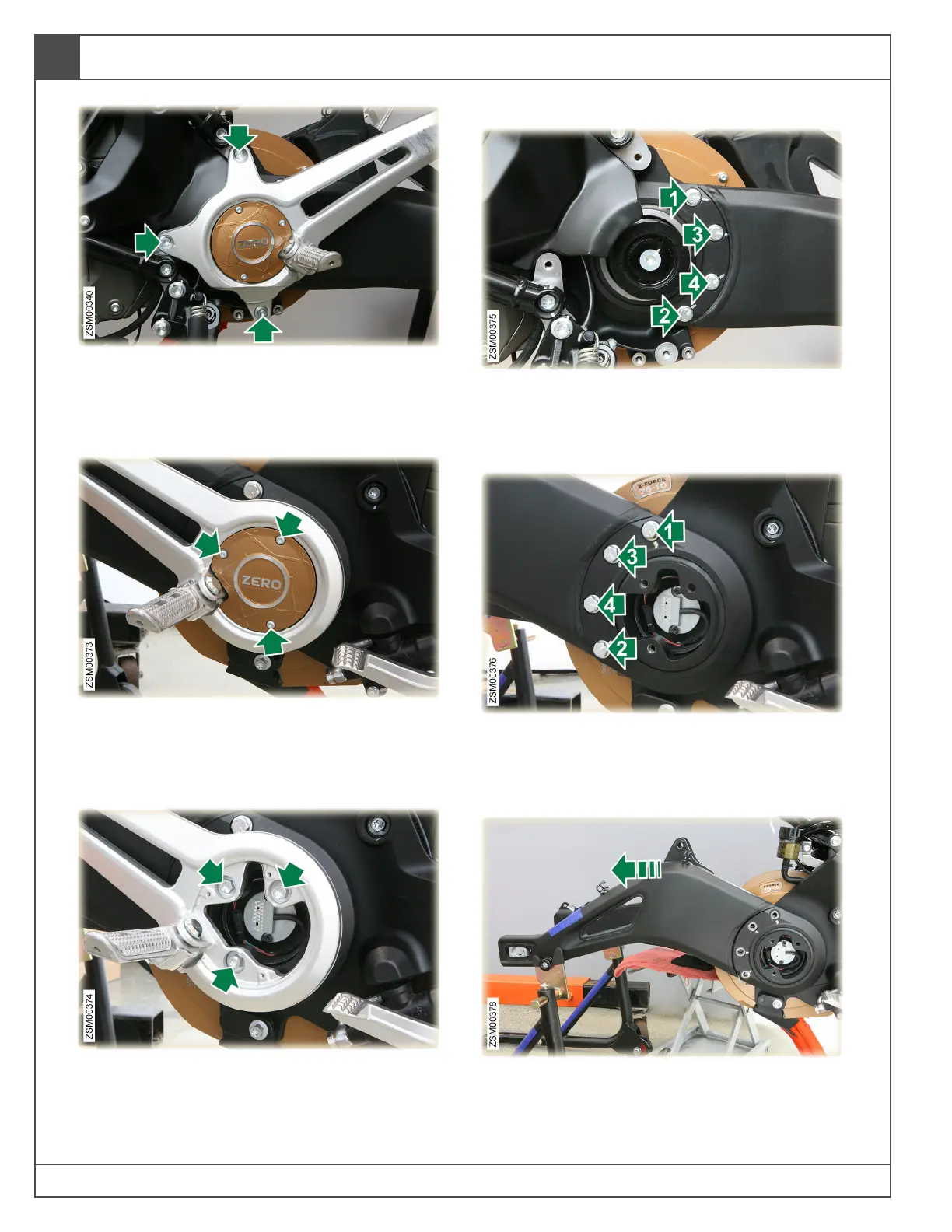

42. Remove bolts (x3) securing left foot peg
bracket to the left doubler plate. Tool: T40.
Torque: 20 lb-ft (27 Nm).
43. Remove foot peg bracket.
44. Remove bolts (x3) securing encoder cover
plate from right foot peg bracket. Tool: T20.
Torque: 2 lb-ft (3 Nm).
45. Remove encoder cover.
46. Remove bolts (x3) securing right foot peg
bracket to right doubler plate. Tool: T40.
Torque: 20 lb-ft (27 Nm).
47. Remove right foot peg bracket.
48. Remove bolts (x4) securing swingarm to left
outer bearing cover. Tool: 13mm socket.
Torque (in sequence shown): 24.5 lb-ft
(33 Nm).
49. Remove bolts (x4) securing swingarm to right
outer bearing cover. Tool: 13mm socket.
Torque (in sequence shown): 24.5 lb-ft
(33 Nm).
50. Remove swingarm.
