Suspension
Rear Suspension 40-37
40

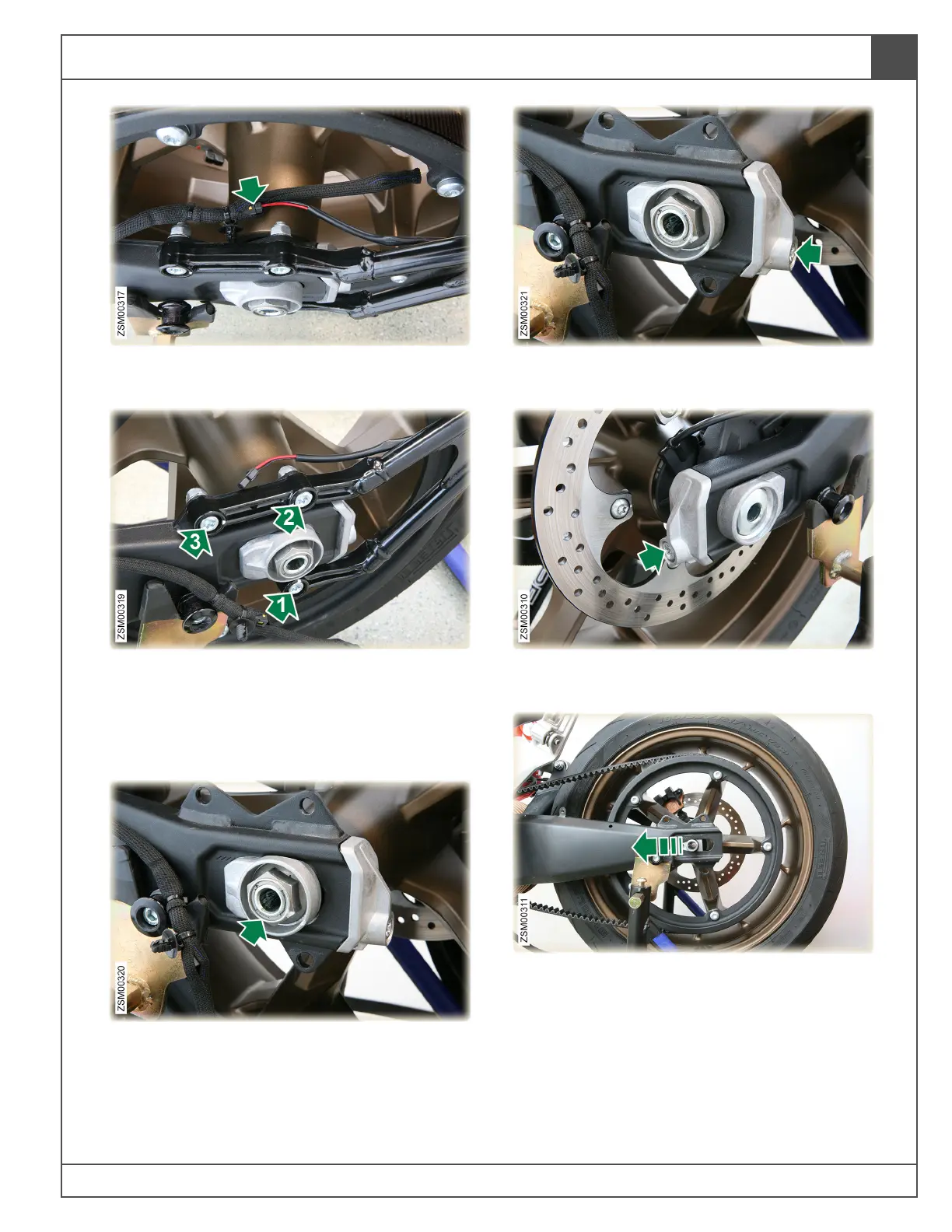

13. Disconnect license plate light harness
connector.
14. Remove bolts (x3) securing the rear fender
arm to the swingarm. Collect the nuts (x3) and
washers (x3). Tool: T45and 13mm socket.
Torque (in sequence shown): 25 lb-ft (34 Nm).
15. Remove rear fender arm.
16. Remove rear axle nut and collect the rear axle
adjuster. Tool: 27mm. Torque: 75 lb-ft
(102 Nm).
17. Remove left adjuster bolt and collect the left
swingarm end cap. Tool: T45
18. Remove left adjuster bolt and collect the right
swingarm end cap. Tool: T45
19. Slide rear axle forward.
