Brakes
Brakes 45-9
45

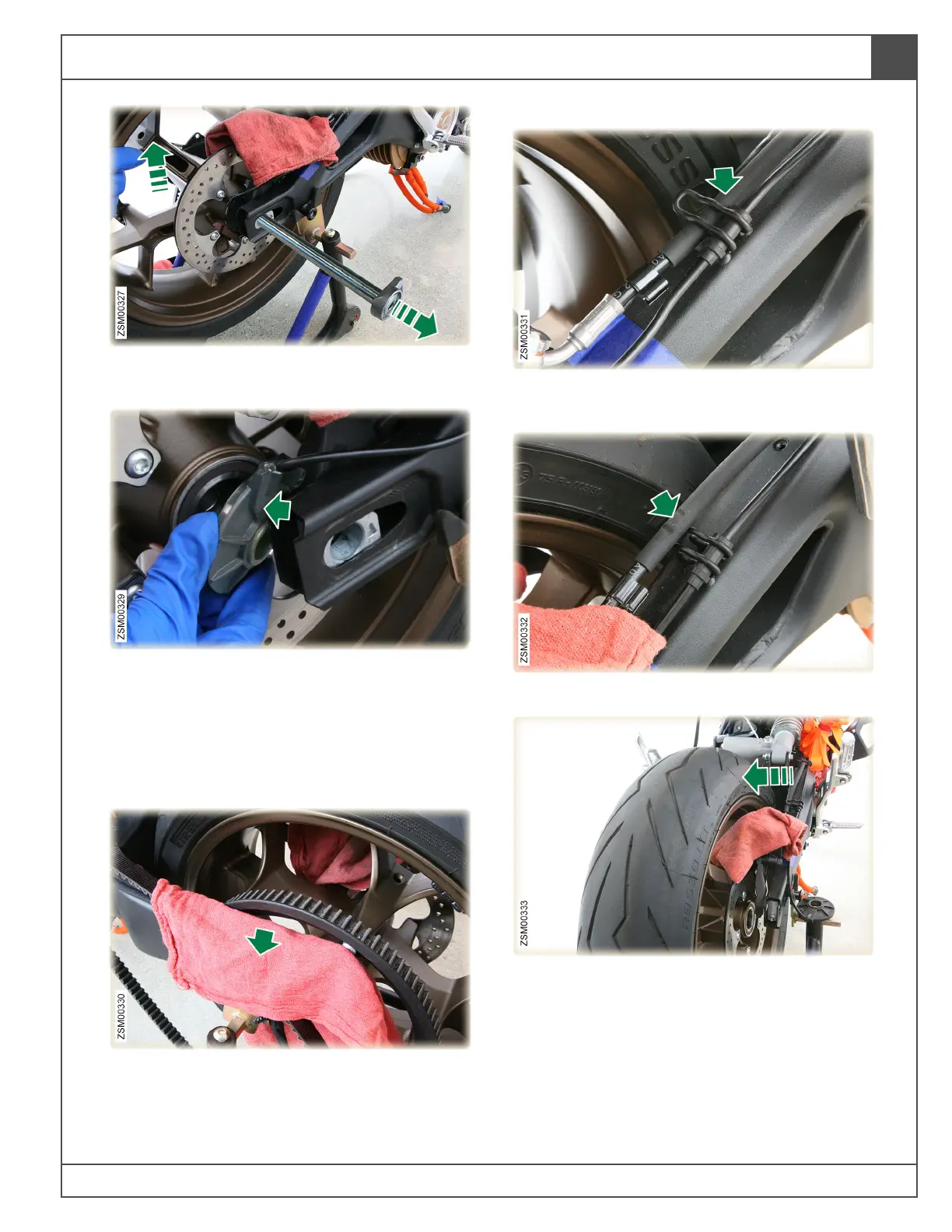

6. Lift rear tire slightly and slide rear axle out of
the swing arm.
7. Raise rear tire and remove rear wheel speed
sensor (WSS) and set aside.
Note: Make sure the WSS is supported and not
straining the WSS harness.
8. Lower the rear tire carefully to keep from
damaging painted surfaces.
9. Place rag over the left side of the swingarm
between the rear sprocket and the swing arm
to protect painted surfaces.
10. Roll rear tire forward.
11. Release rear brake hose from the metal
retaining clip.
12. Position the rear brake hose on top of clip.
13. Tip the top of the rear tire to the left.
