45-14 Brakes
Brakes
45

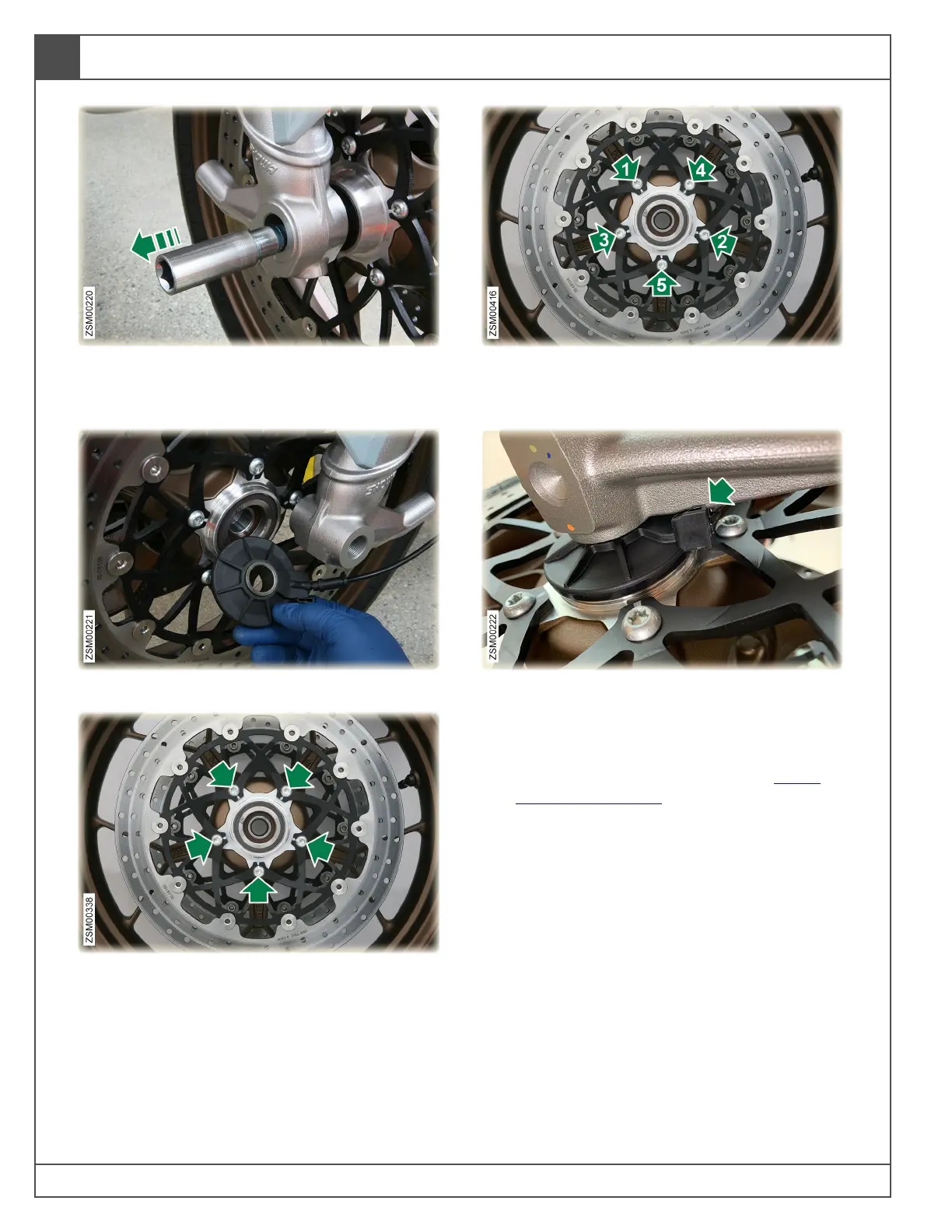

23. Remove front axle and collect the front wheel.
Tool: 17mm hex bit socket. Torque: 40 lb-ft
(54 Nm).
24. Release the front WSS from the front wheel.
25. Remove bolts (x5) securing the brake rotor to
the front wheel. Tool: T40. Torque: 20 lb-ft
(27 Nm).
Installation
1. Installation is the reverse of the removal
procedure, but take note of the following
installation step.
2. Install bolts (x5) securing the brake rotor to the
front wheel in a star pattern. Tool: T40.
Torque: 20 lb-ft (27 Nm).
3. When installing the front WSS, make sure the
alignment tab is positioned against the bottom
edge of the left front shock as shown.
4. After replacing a brake rotor, perform the
brake pad bedding procedure. See Brake
Bedding, page 10.7.
