Brakes
Brakes 45-15
45

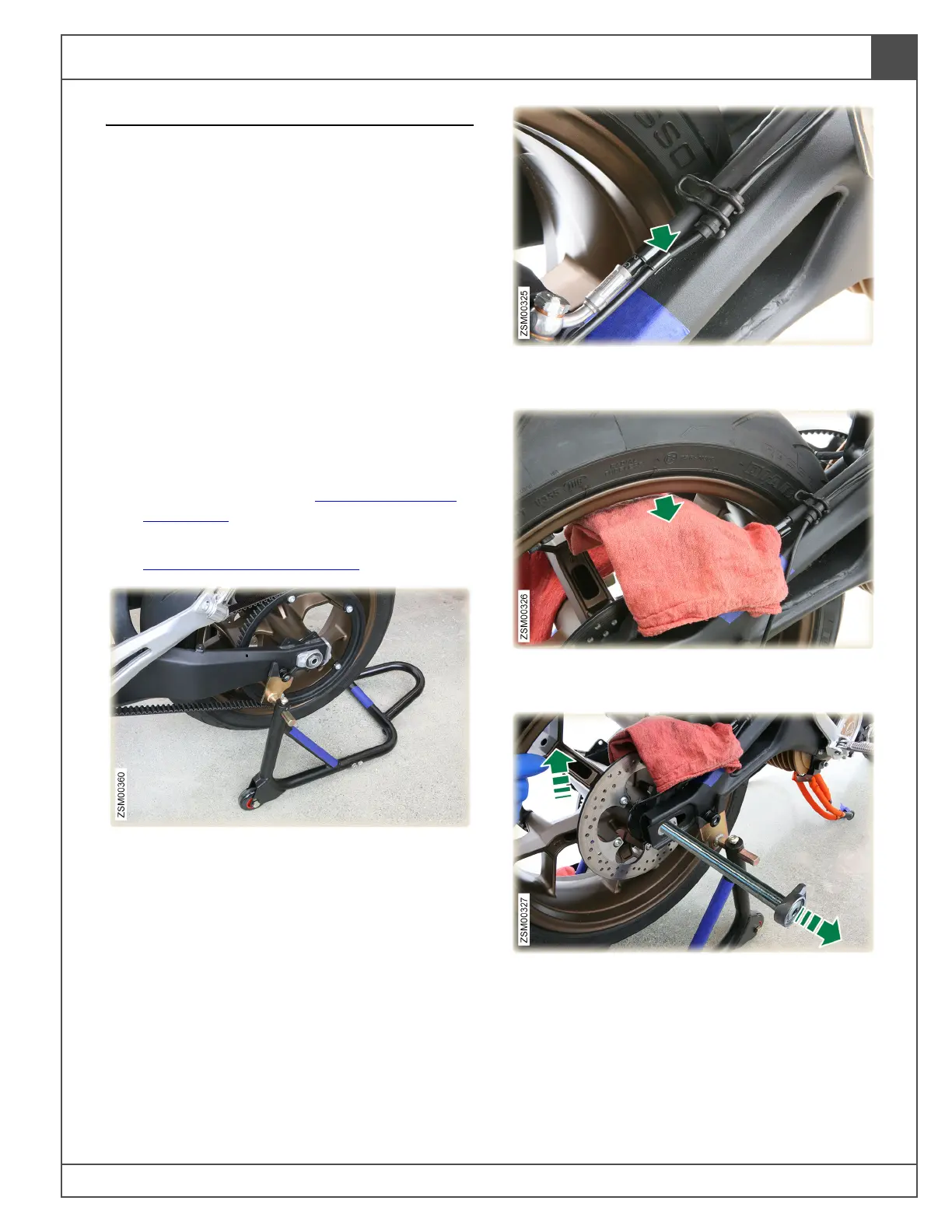

Brake Rotor (Rear)
Tools Required (includes tools required for
parent jobs):
• T25
• T40
• T45
• 27mm socket and ratchet
• 13mm wrench
• Motorcycle stand
New Fasteners Required:
• Cable ties (quantity: 1)
Removal
1. Remove drive belt. See Replace Drive Belt
,
page 40.35.
2. Remove brake pads from the rear caliper. See
Brake Pads (Rear)
, page 45.5.
3. Safely raise rear tire off the ground using a
motorcycle stand.
4. Release rear WSS harness from plastic
retainer.
5. Place rag over rear caliper to protect painted
surfaces.
6. Lift rear tire slightly and slide rear axle out of
the swing arm.
