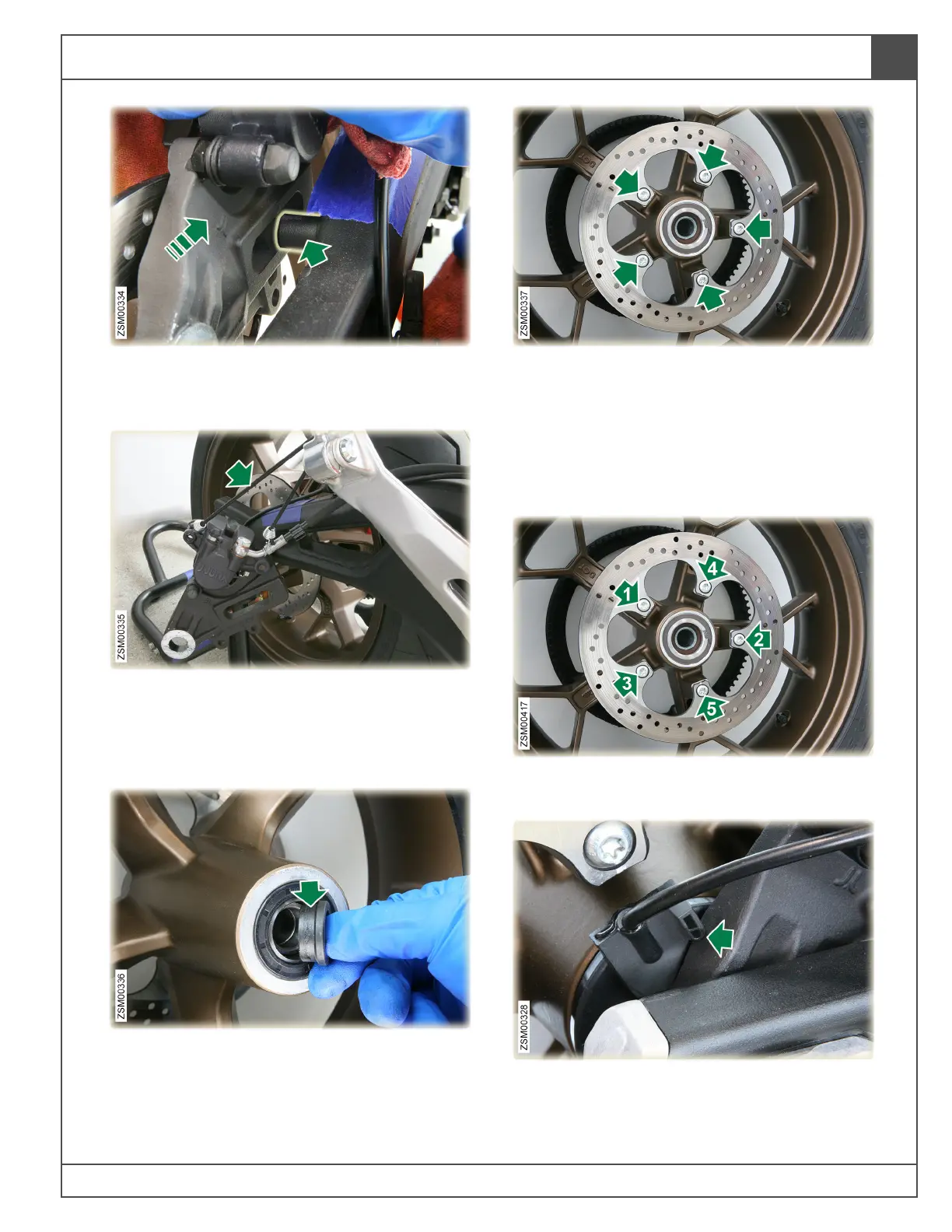

14. Slide rear caliper assembly toward wheel and
slide caliper bracket off of the bracket
alignment pin.
15. Tie caliper up to the foot peg bracket.
Note: Make sure the brake caliper is hung up
and not straining the brake hose.
16. Roll the rear wheel out of the swing arm.
17. Remove aluminum bushing from left side
(sprocket side) of the wheel.
18. Remove bolts (x5) securing the brake rotor to
the rear wheel. Tool: T40. Torque: 26 lb-ft
(35 Nm).
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
2. Install bolts (x5) securing the brake rotor to the
rear wheel. Tool: T40. Torque: 26 lb-ft (35 Nm).
3. When installing the rear WSS, make sure the
alignment tab is positioned against the top
edge of the rear brake bracket as shown.
