Brakes
Brakes 45-21
45

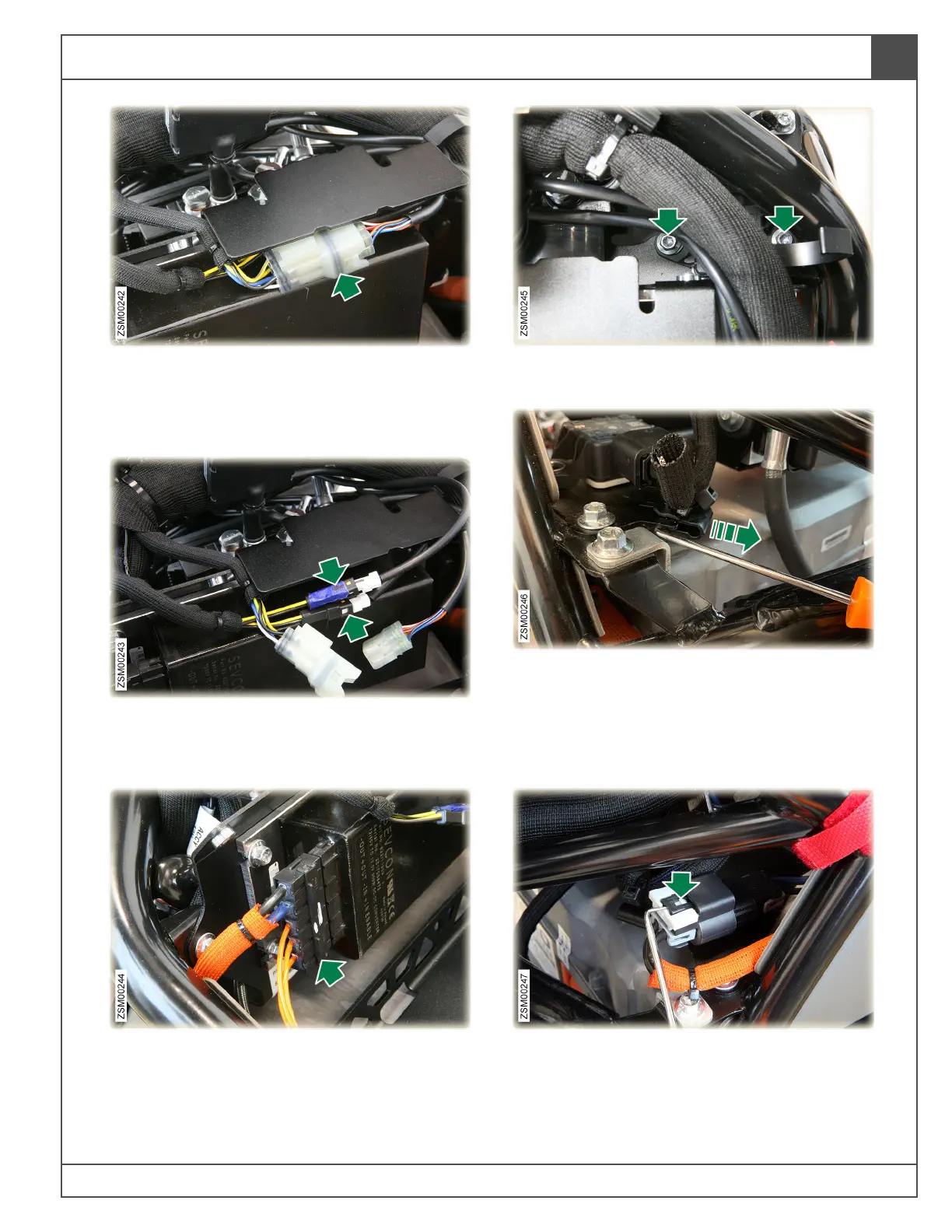

16. Disconnect key switch wiring harness
connector.
Note: Take note of harness routing for
installation process.
17. Disconnect heated grip harness connectors (if
equipped).
Note: Label/mark connectors.
18. Disconnect DC/DC converter harness
connector.
19. Remove bolts (x2) securing IMU to the HCU
bracket. Tool: T30. Torque: Hand tight.
20. Release clip securing IMU harness to HCU
bracket. Tool: O-ring pick
Note: The locking tab is located on the lower
portion of the clip.
21. Tie IMU aside.
22. Release grey locking clip from the DC/DC
controller harness converter. Tool: O-ring pick.
To Next Page
