Maintenance and Safety
Motor Commissioning 10-11
10

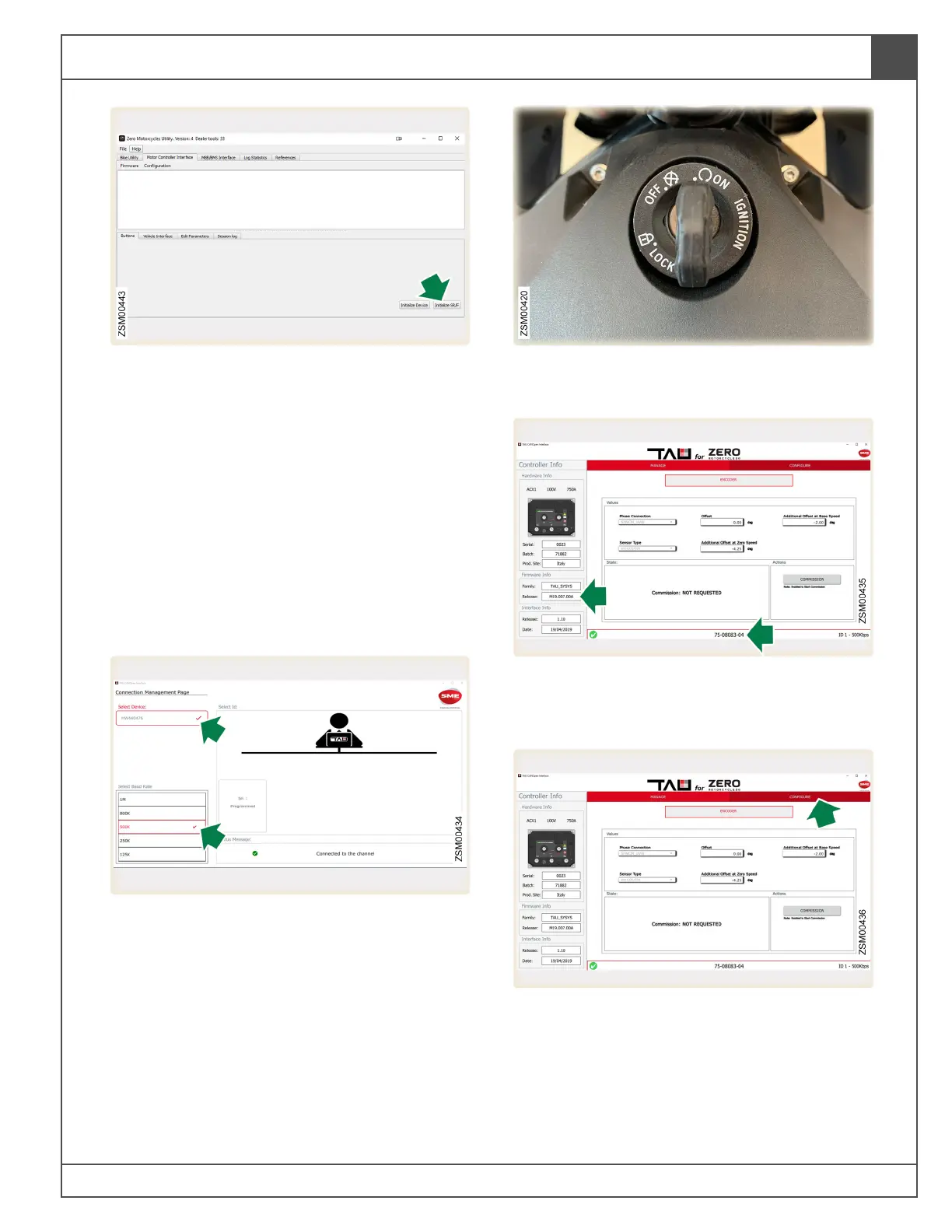

6. Click on “Initialize SR/F”.
7. Look for message that says “Ready to
commission motor, please open TAUCAN
software and begin.”
Note: If this message doesn’t appear, confirm
that the key is in the OFF position, remove
USBs from your computer, and remove the
OBDII diagnostic cable from the motorcycle.
Restart the ZDU. Reconnect the cable and
reattempt.
8. Set the motorcycle to run mode (kickstand up
and the Motor Stop Switch in the “run”
position).
9. Select device and 500k baud rate.
10. Turn the key to the ON position.
11. Click on Controller id: 1 square.
12. Check firmware is up to date:
FW: M19.007.00A (located on the left) Config:
75-08083-04 (located on the bottom).
13. Click “CONFIGURE” tab.
To Next Page
