Body
Body 60-7
60

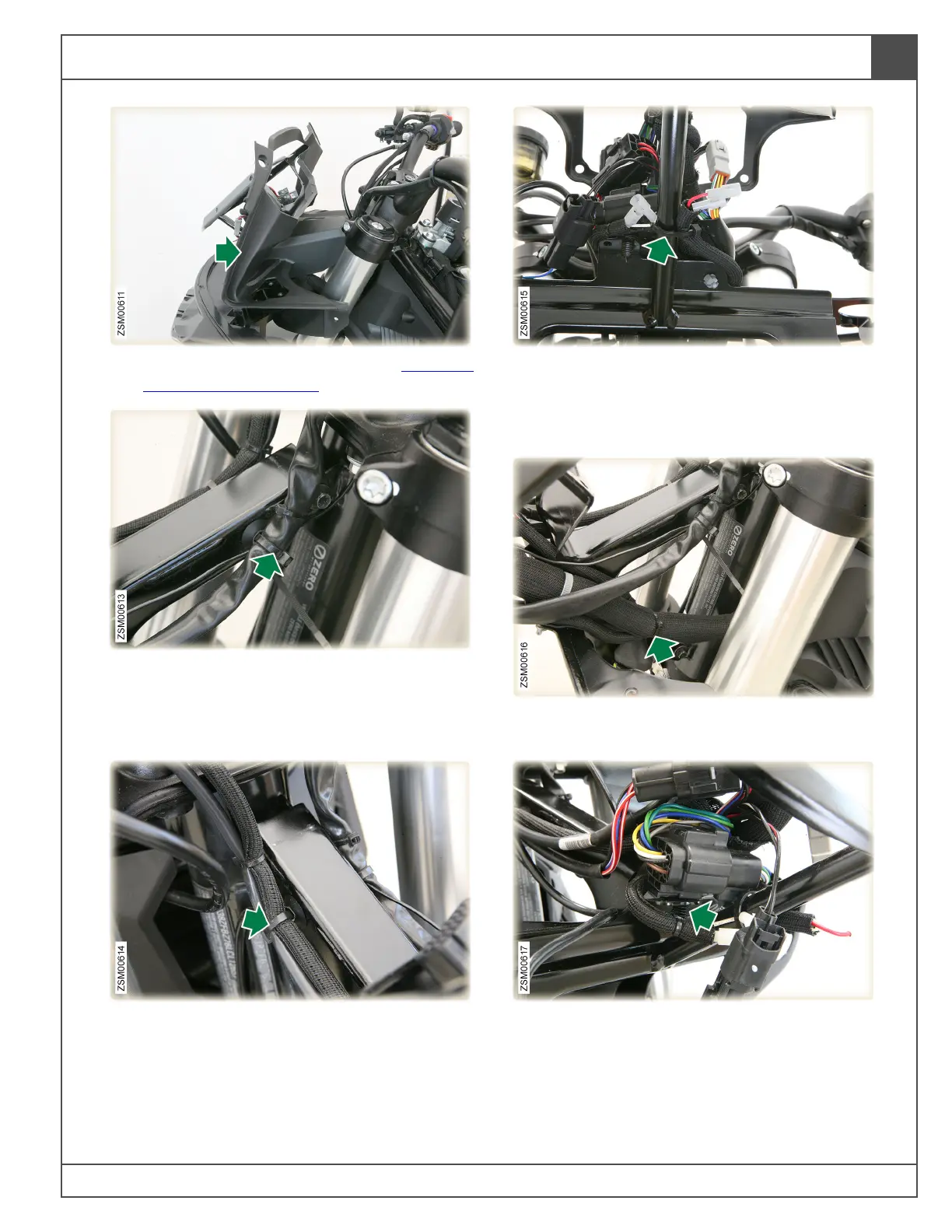

6. Remove headlight inner fairing. See Headlight
Inner Fairing, page 60.3.
7. Cut cable tie securing the mode switch
electrical harness to hela bracket.
Note: Replace cable tie during the installation
process.
8. Cut cable tie securing the right handlebar
controls electrical harness to hela bracket.
Note: Replace cable tie during the installation
process.
9. Cut cable tie securing the front turn signal
electrical harnesses to hela bracket.
Note: Replace cable tie during the installation
process.
10. Release harness cable tie anchor securing the
main electrical harness to the hela bracket.
11. Release harness connector anchor securing
the mode switch harness connector to the
hela bracket.
To Next Page
