Body
Body 60-11
60
5. Remove headlight upper fairing. See
Headlight Upper Fairing
, page 60.2.
6. Remove left and right outer side fairings. See
Side Fairings (Outer)
, page 60.14.

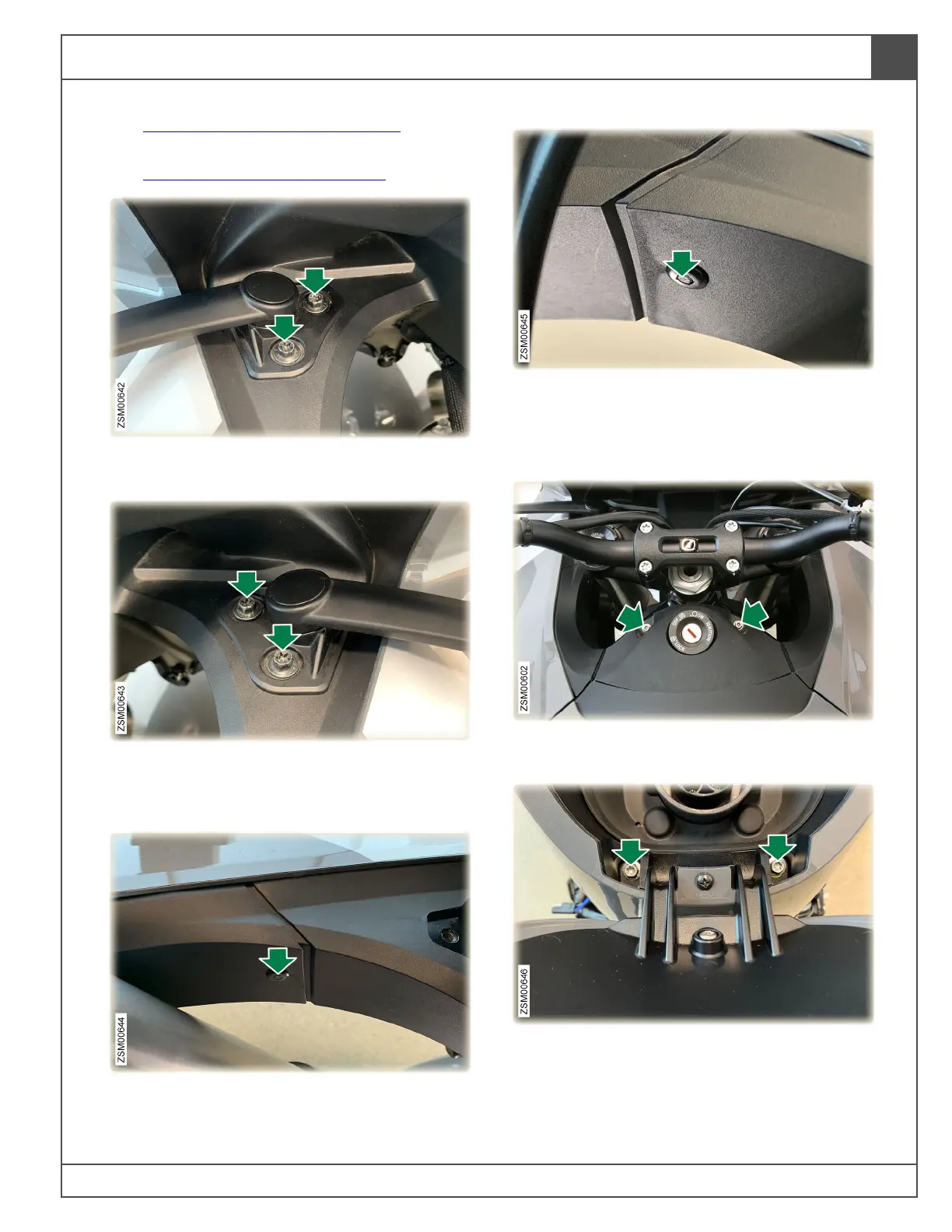

7. Remove bolts (x2) securing left mirror to the
motorcycle. Tool: T30. Torque: 5 lb-ft (7 Nm).
8. Remove bolts (x2) securing right mirror to the
motorcycle. Tool: T30. Torque: 5 lb-ft (7 Nm).
9. Remove right mirror from motorcycle.
10. Push the center of the panel retainer (securing
the left inner fairing arm to the headlight inner
fairing) inward to release it.
11. Remove the left panel retainer.
12. Push the center of the panel retainer (securing
the right inner fairing arm to the headlight
inner fairing) inward to release it.
13. Remove the right panel retainer.
14. Remove bolts (x2) securing tank to key switch
bracket. Tool: T25. Torque: 4.5 lb-ft (6 Nm).
15. Remove bolts (x2) securing tank to charger
port bracket. Tool: T25. Torque: 4.5 lb-ft
(6 Nm).
