Zero SR/S User Manual

60-20 Body
Body
60

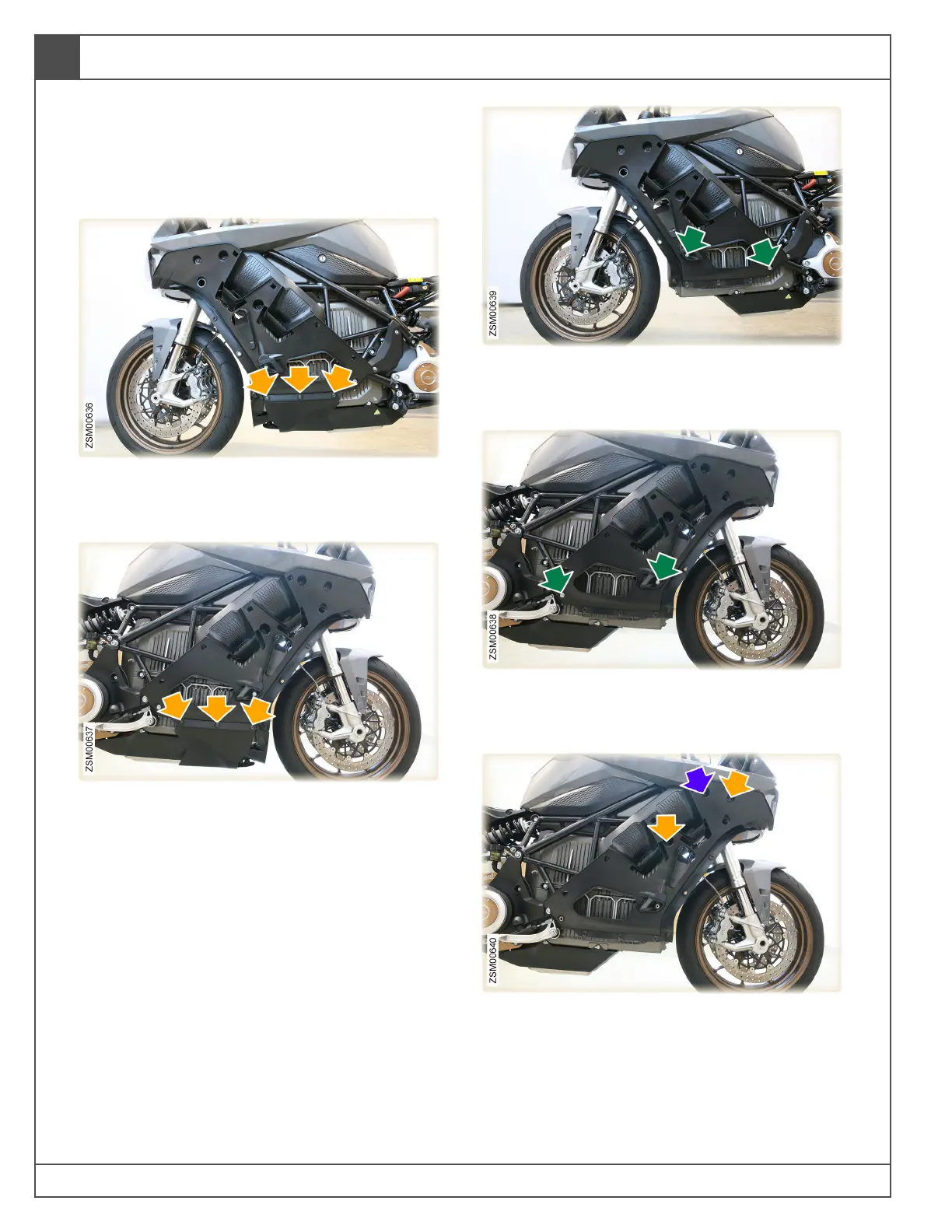

Long bolts: designated on photos with blue
arrows, used to attach 2 layers of body panels.
Note: Non-shouldered body bolts designated
with green arrows are present in this
procedure.
7. Remove bolts (x3) securing the velocity tube
assembly to the left inner side fairing. Tool:
T25. Torque: 3 lb-ft (4 Nm).
8. Remove bolts (x3) securing the velocity tube
assembly to the right inner side fairing. Tool:
T25. Torque: 3 lb-ft (4 Nm).
9. Remove the velocity tube assembly.
10. Remove bolts (x2) securing the lower half of
the left inner side fairing to the motorcycle
frame. Tool: T30. Torque: 3 lb-ft (4 Nm).
11. Remove bolts (x2) securing the lower half of
the right inner side fairing to the motorcycle
frame. Tool: T30. Torque: 3 lb-ft (4 Nm).
12. Remove long bolt (x1[blue arrow]) and short
bolts (x2[orange arrows]) securing the upper
half of the right inner side fairing to the
motorcycle frame and bodywork. Tool: T25.
Torque: 3 lb-ft (4 Nm).
Note: Take note of length of the bolts.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
