60-26 Body
Body
60

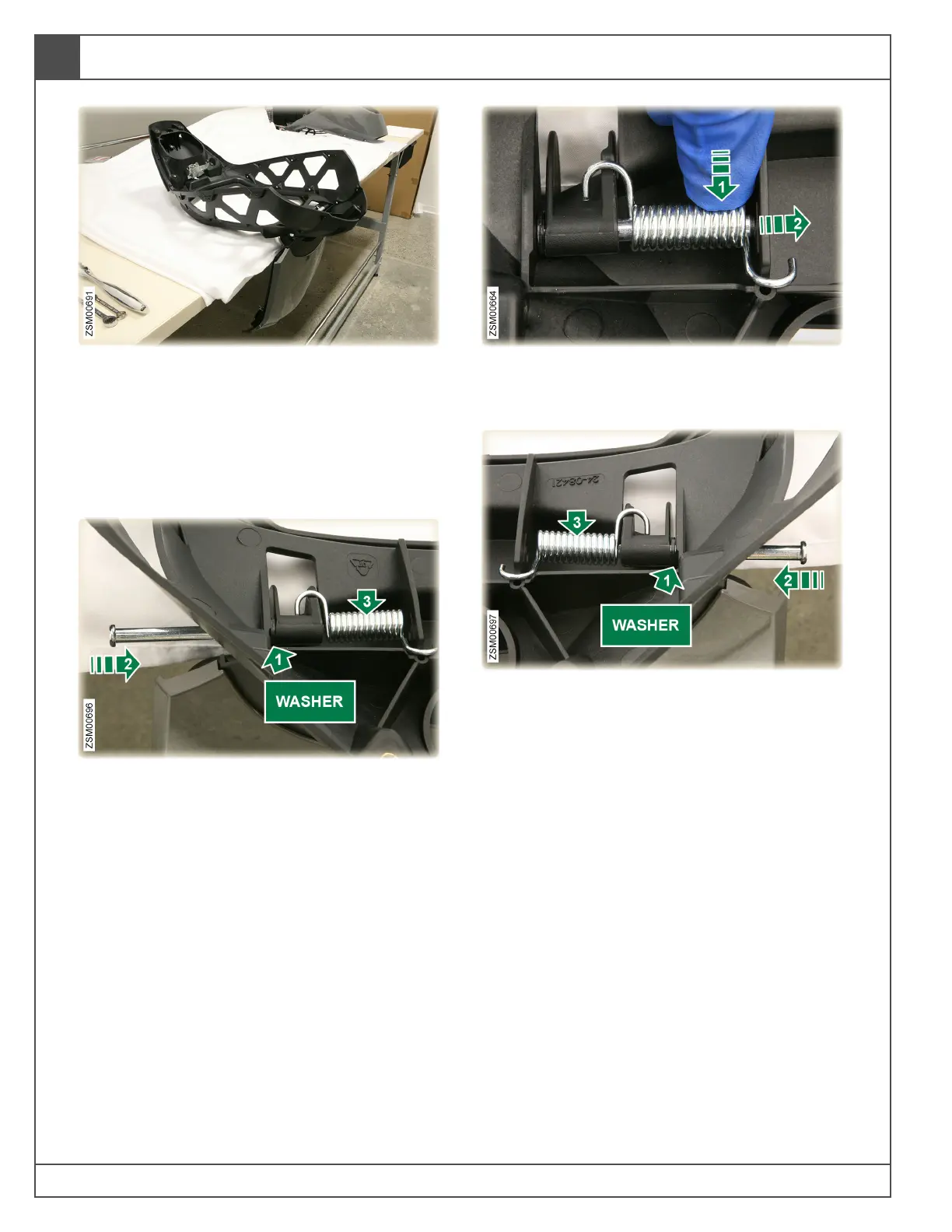

3. Place the tank collar on a bench, upside down
so the tank lid can be open (as shown) during
installation of the tank lid hinge pins and
springs.
Note: Place a non-scuff soft cloth on the
working surface of your workbench prior to
assembly.
4. Place washer (arrow #1) between the tank lid
hinge and the tank collar, while pressing hinge
pin (arrow #2) through hole in tank collar, then
install tank lid spring (arrow #3) and slide the
pin (arrow #2) far enough to hold the spring
(arrow #3) in place.
Note: There is a left and a right tank lid spring,
so confirm (by looking at the photos) that you
have the correct spring prior to installation.
5. Apply pressure to the left tank lid spring (arrow
#1) while pressing hinge pin (arrow #2)
through hole in tank collar.
6. Place washer (arrow #1) between the tank lid
hinge and the tank collar, while pressing hinge
pin (arrow #2) through hole in tank collar, then
install tank lid spring (arrow #3) and slide the
pin (arrow #2) far enough to hold the spring
(arrow #3) in place.
Note: There is a left and a right tank lid spring,
so confirm (by looking at the photos) that you
have the correct spring prior to installation.
