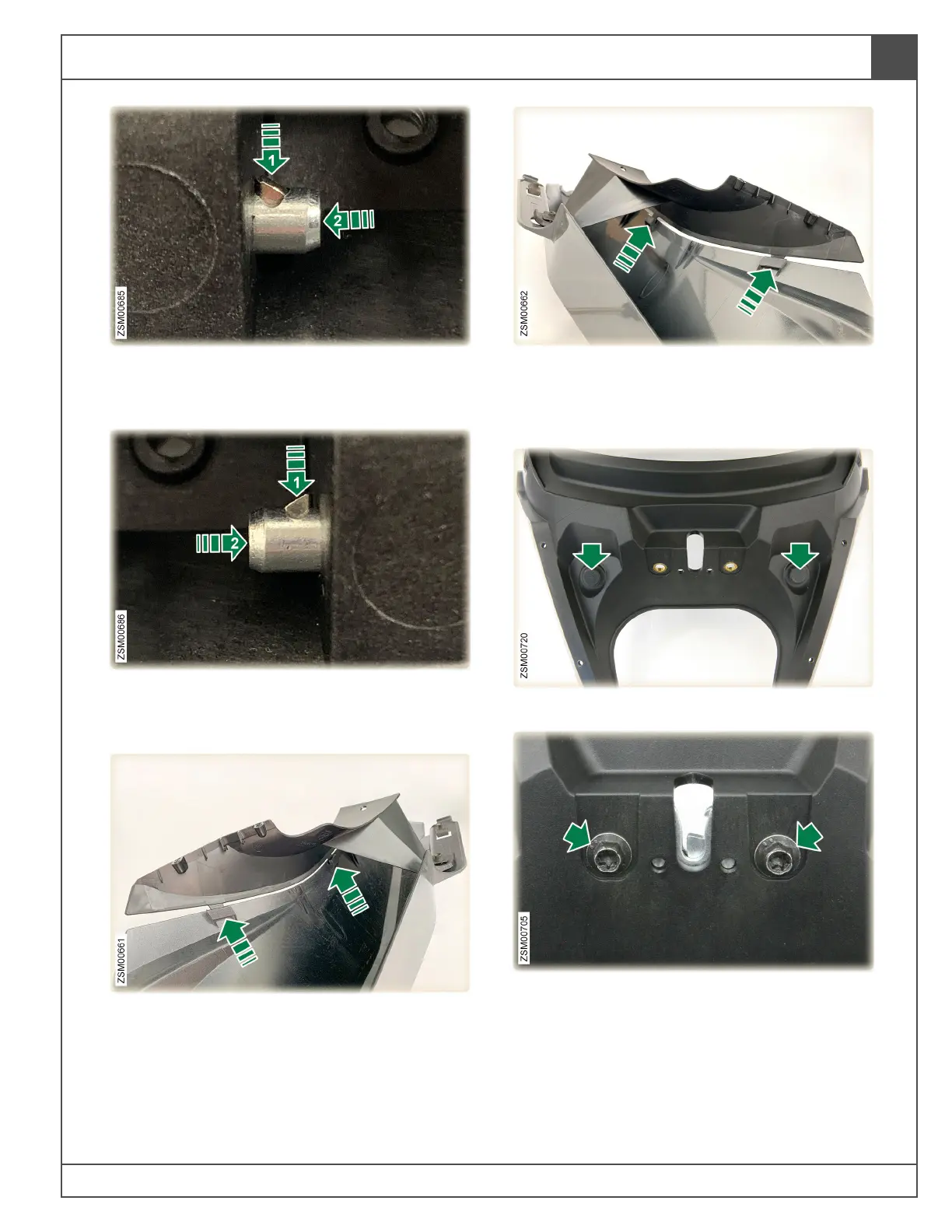

17. To remove the left charge inlet lid hinge pin,
press locking pin (arrow #1) while pressing
hinge pin (arrow #2) out of tank collar.
18. To remove the right charge inlet lid hinge pin,
press locking pin (arrow #1) while pressing
hinge pin (arrow #2) out of tank collar.
19. Release locking tabs securing the left fairing
arm inner to the left fairing arm outer.
20. Release locking tabs securing the right fairing
arm inner to the right fairing arm outer.
Assemble
1. Install bumpers in tank collar.
2. Install bolts (x2) securing the tank lid latch to
the tank collar. Tool: T30. Torque: 4.5 lb-ft
(6 Nm).
