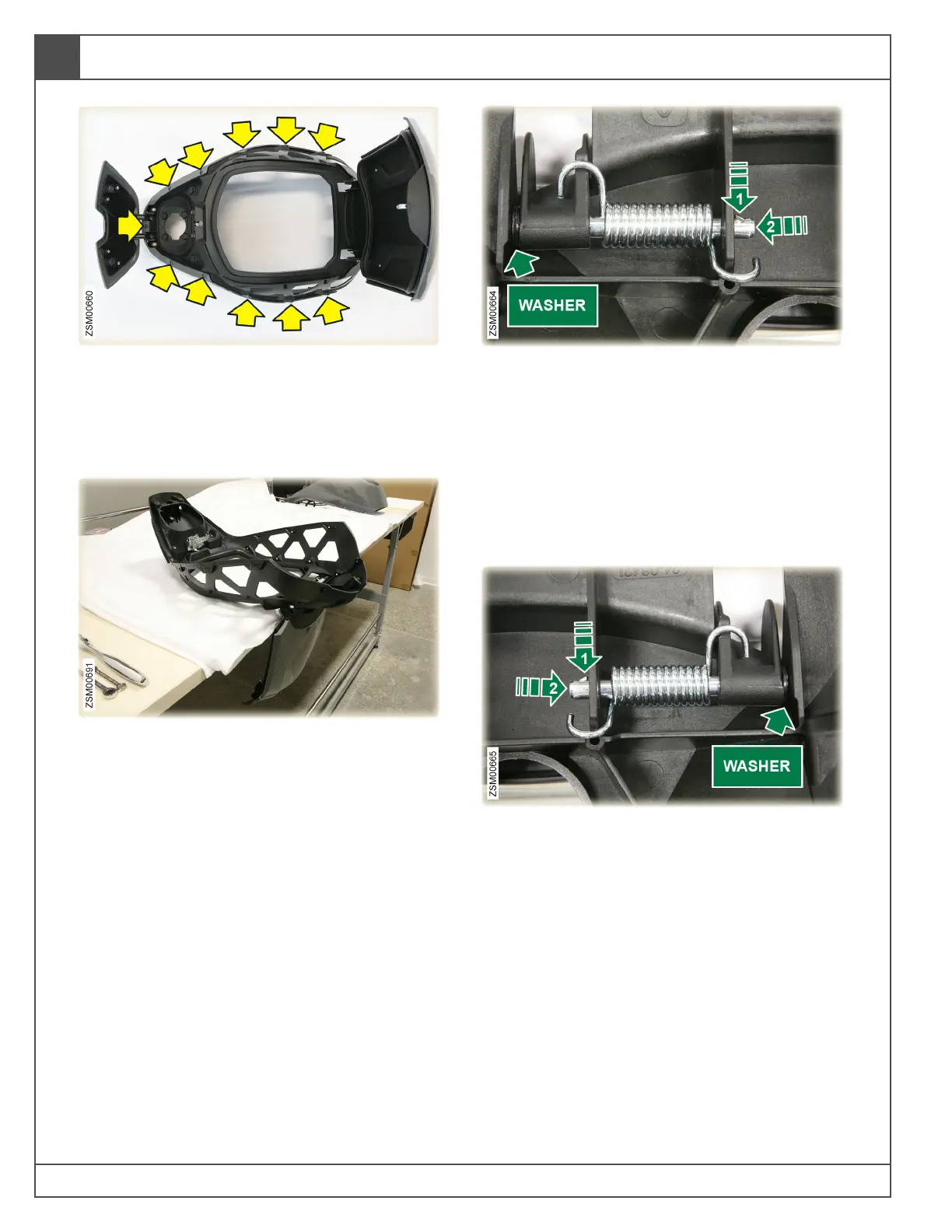

12. Remove small screws (x11) securing the tank
rear to the tank collar. Tool: #2 Phillips
screwdriver. Torque: Hand tighten - Do not
over-tighten.
13. Remove tank rear from the tank collar.
14. Place the tank collar on a bench, with the tank
lid open (as shown) to remove tank lid hinge
pins and springs.
Note: Place a non-scuff soft cloth on the
working surface of your workbench.
15. To remove the left tank lid hinge pin, press
locking pin (arrow #1) while pressing hinge pin
(arrow #2) out of tank collar. Collect washer
secured between the tank lid hinge and the
tank collar.
Note: Hold tank lid spring down (toward top of
tank collar) while removing the hinge pin.
Note: Take note of hinge spring location, there
is a right and a left spring.
16. To remove the right tank lid hinge pin, press
locking pin (arrow #1) while pressing hinge pin
(arrow #2) out of tank collar. Collect washer
secured between the tank lid hinge and the
tank collar.
Note: Hold tank lid spring down (toward top of
tank collar) while removing the hinge pin.
Note: Take note of hinge spring location, there
is a right and a left spring.
