Zero SR/S User Manual

Electrical
Lighting 70-13
70

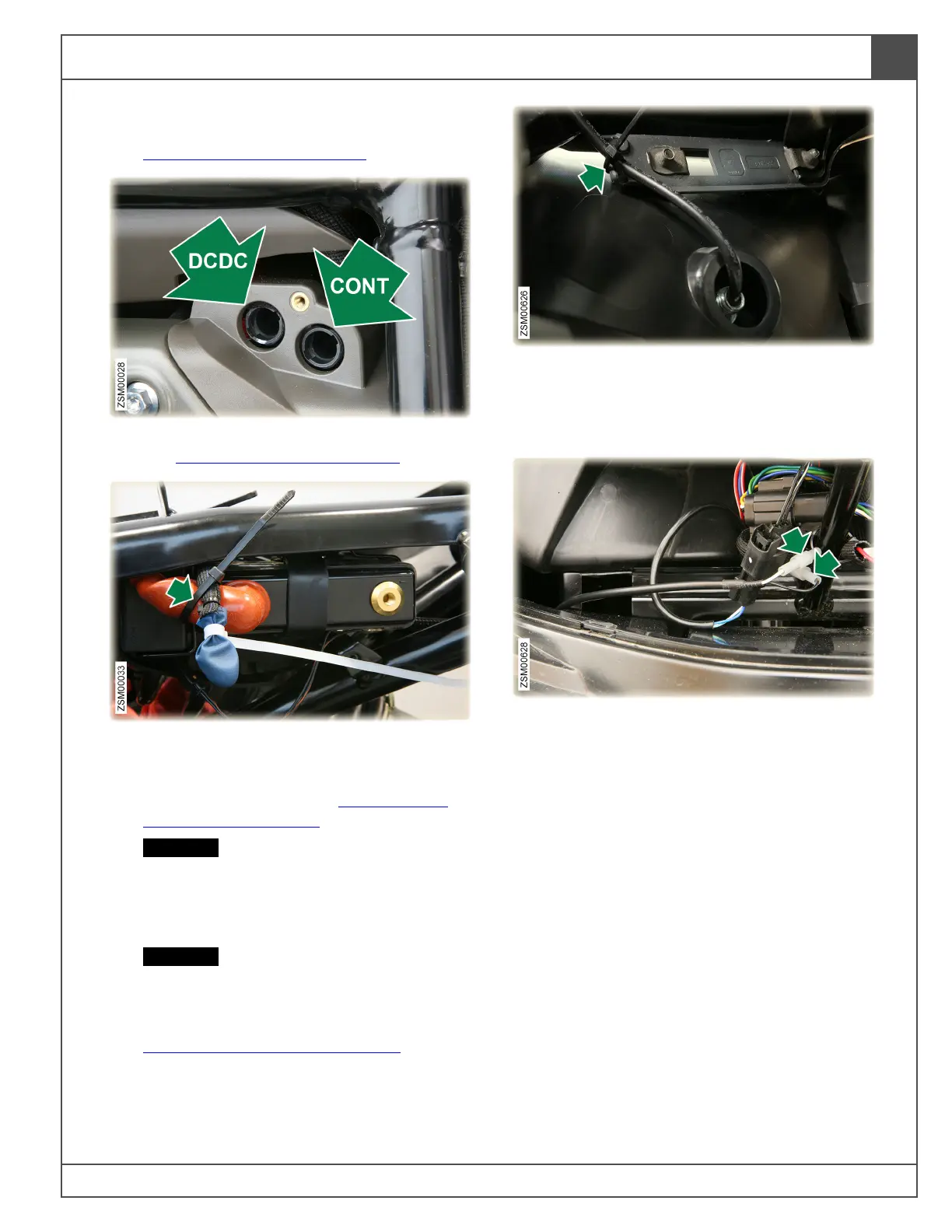

Removal
1. PERFORM LOCKOUT PROCEDURE: See
Lockout Procedure, page 10.1.
2. Remove high voltage DCDC and CONT fuses.
See High Voltage Fuses, page 70.1.
3. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
4. Remove headlight upper fairing. See
Headlight Upper Fairing, page 60.2.
5. Cut cable tie securing right front turn signal
electrical harness to hela bracket.
Note: Replace cable tie during the installation
process.
6. Disconnect right front turn signal harness
connectors.
Note: Take note of the wire insulation colors.
The turn signal wire colors match the colors of
the main wire harness.
Right turn signal wire colors: black and white.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
