Zero SR/S User Manual

70-14 Lighting
Electrical
70

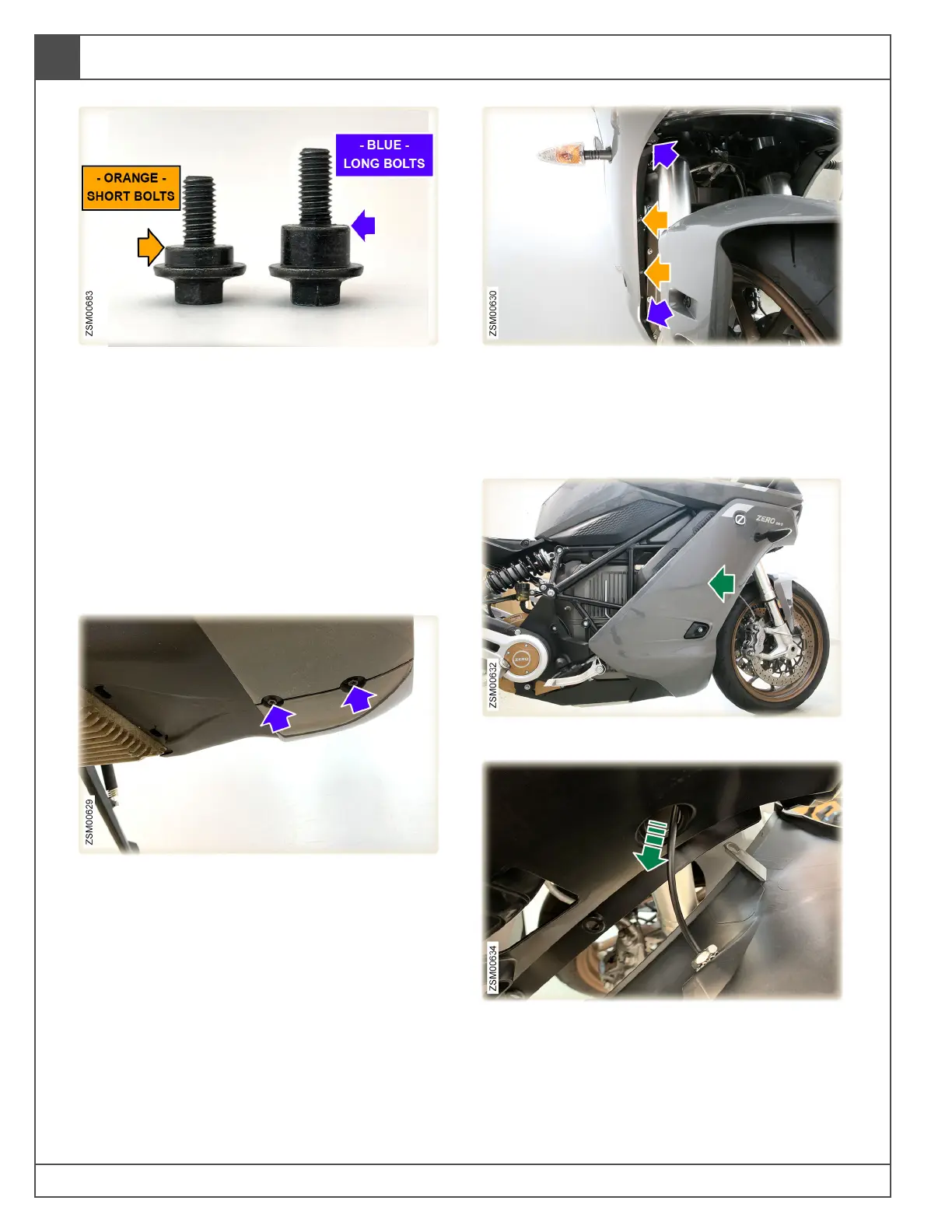

7. For the rest of this procedure, there will be
references to shouldered-bolts securing body
panels, that are 2 different lengths.
Short bolts: designated on photos with
orange arrows, used to attach a single body
panel layer.
Long bolts: designated on photos with blue
arrows, used to attach 2 layers of body panels.
Note: Non-shouldered body bolts designated
with green arrows are present in this
procedure.
8. Remove long bolts (x2) securing bottom of
right outer side fairing to bodywork. Tool: T25.
Torque: 3 lb-ft (4 Nm).
9. Remove long bolts (x2[blue arrows]) and
short bolts (x2[orange arrows]) securing the
leading edge of the right outer side fairing to
bodywork. Tool: T25. Torque: 3 lb-ft (4 Nm).
Note: Take note of length of the bolts.
10. Remove right outer side fairing.
11. While removing right outer side fairing, guide
the right front turn signal harness wires
through their access hole in the right inner
side fairing.

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
