Zero SR/S User Manual

Power Pack
Power Pack 20-3
20

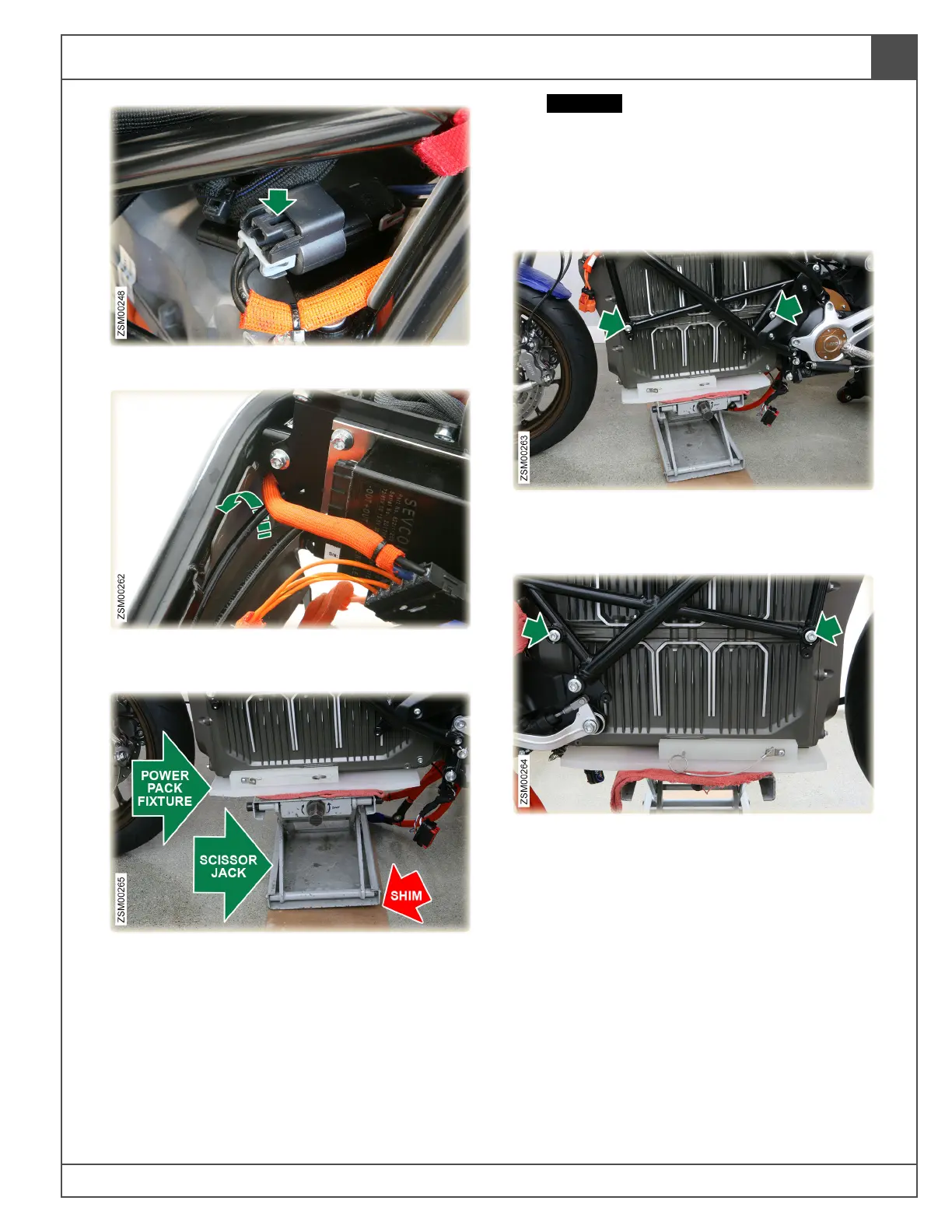

15. Release DC/DC converter harness connector.
16. Route DC/DC converter harness over the top
of the rear brake hoses.
17. Support and lift the power pack with a Zero
Motorcycle Power Pack Fixture and a scissor
jack.
WARNING! If shimming of the scissor jack is
necessary to position the power pack
fixture and lift evenly, do not shim too much
or the power pack could tip over and cause
serious injury and/or damage the power
pack.
CAUTION: Do not lift the power pack without
the proper tool. Do not lift or support the
power pack by the power pack side plates.
The power pack side plates are not
designed to support the weight of the power
pack. Disregarding this caution will cause
damage to the power pack.
18. Remove bolts (x2) securing the left side of the
power pack to the frame. Tool: T40. Torque:
26 lb-ft (35 Nm).
19. Remove bolts (x2) securing the right side of
the power pack to the frame. Tool: T40.
Torque: 26 lb-ft (35 Nm).

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
