20-4 Power Pack
Power Pack
20

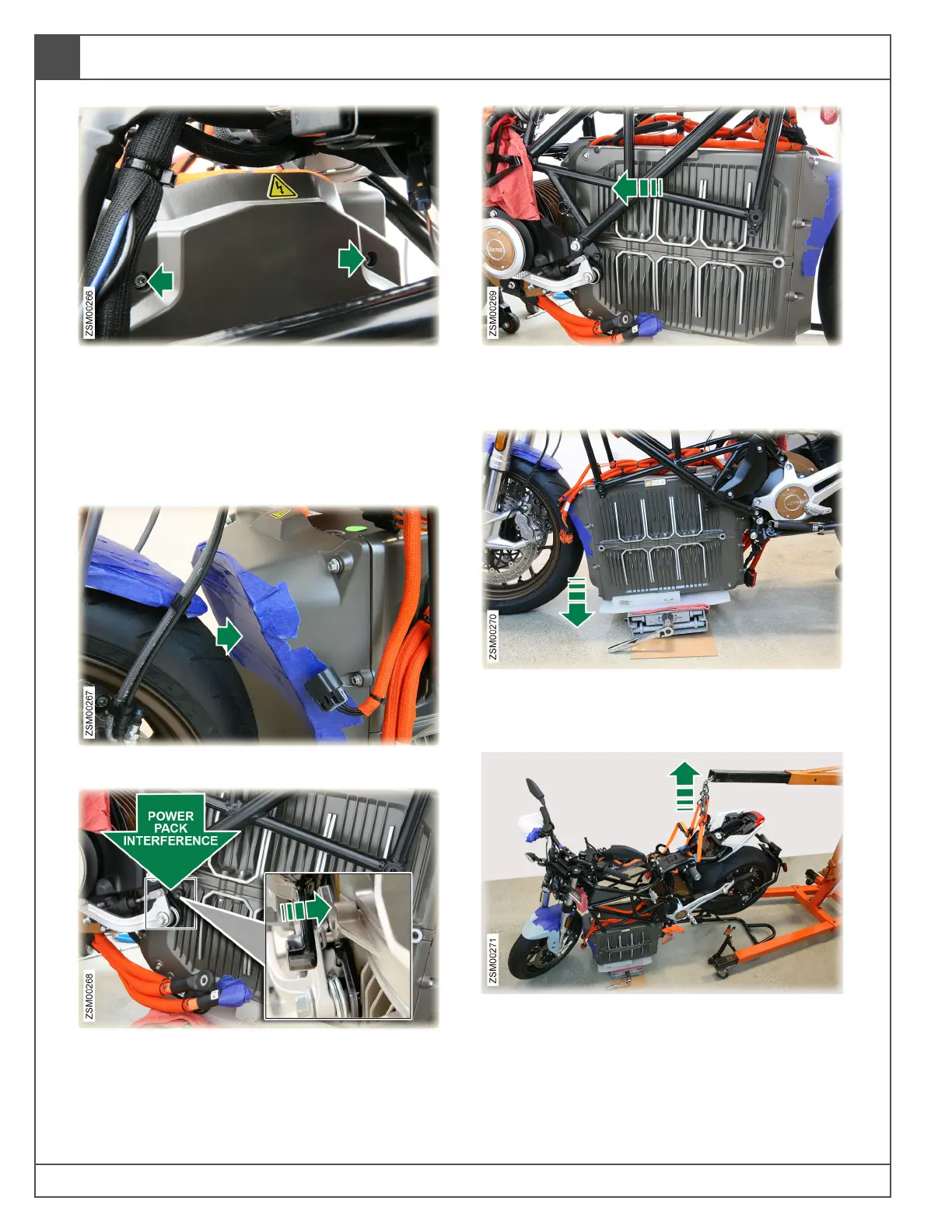

20. Lower the power pack to gain access to the
rear cover bolts.
21. Remove bolts (x2) securing the rear cover to
the power pack. Tool: T20. Torque: Hand
Note: Lift rear cover out over the top of the
power pack.
22. Protect the painted surface of the front cover.
23. Lower power pack until right side plate is
almost touching the rear brake master
cylinder bracket, then move the power pack to
the left side to clear the bracket.
24. Move the motorcycle backward to increase
clearance to between the motor and the back
of the power pack.
25. With the jack all the way down, the power pack
will still not slide out from under the
motorcycle.
26. With lift straps around the rear subframe, raise
the back of the motorcycle approximately 14”
with a hoist.
