70-30 Heated Grip
Electrical
70

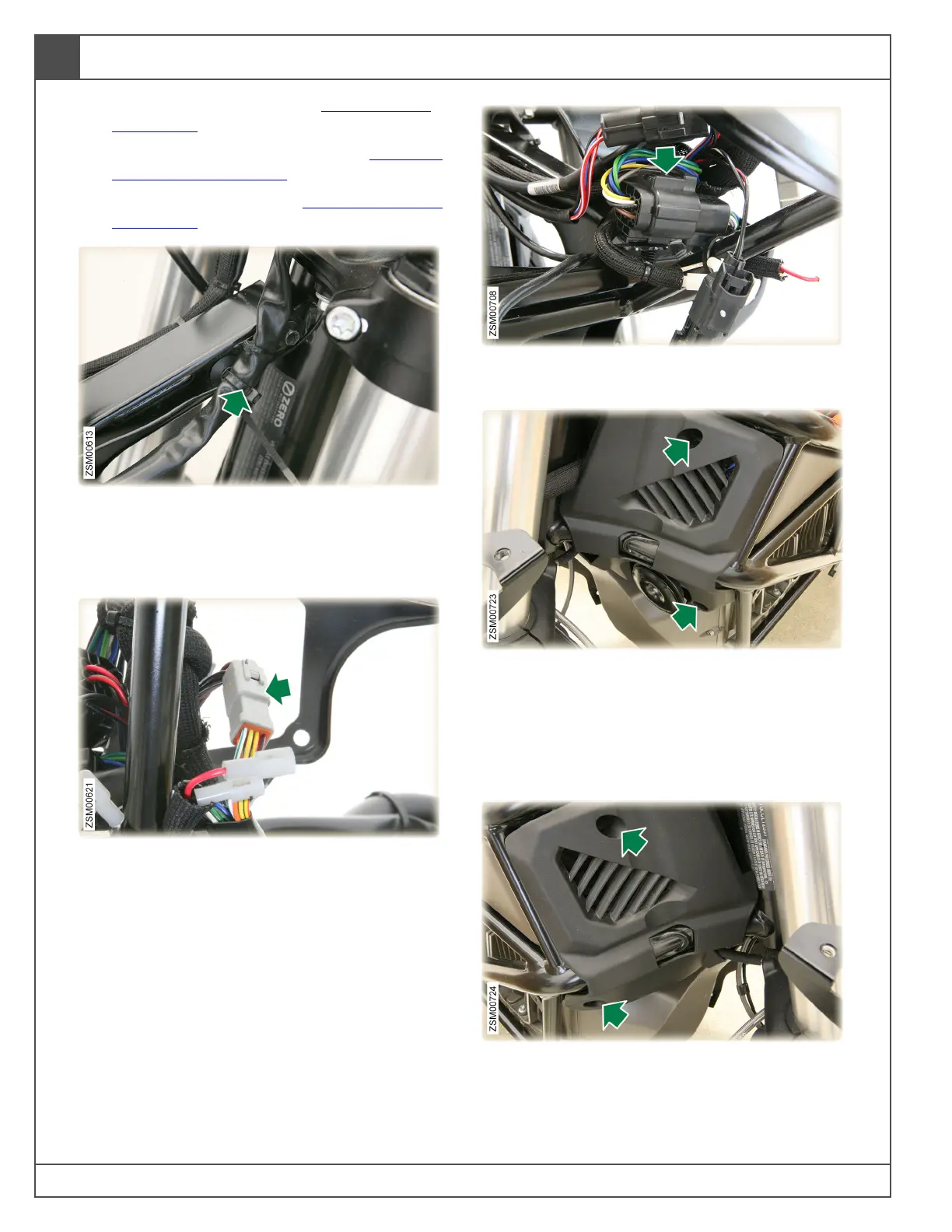

6. Remove tank assembly. See Tank Removal,
page 60.10.
7. Remove headlight inner fairing. See Headlight
Inner Fairing, page 60.3.
8. Remove storage liner. See Tank Storage Liner,
page 60.34.
9. Cut cable tie securing the mode switch
electrical harness to hela bracket.
Note: Replace cable tie during the installation
process.
10. Disconnect the headlight switch electrical
harness connector.
11. Disconnect the mode switch harness
connector.
12. Remove bolts (x2) securing left side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
Note: Protect rear portion of front fender and
front closeout panel surfaces to reduce the
possibility of scratching their surfaces.
13. Remove bolts (x2) securing right side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
14. Remove front closeout panel.
