Electrical
Heated Grip 70-31
70
Note: Position front suspension straight
forward to allow access for removing front
closeout panel downward in front of power
pack.

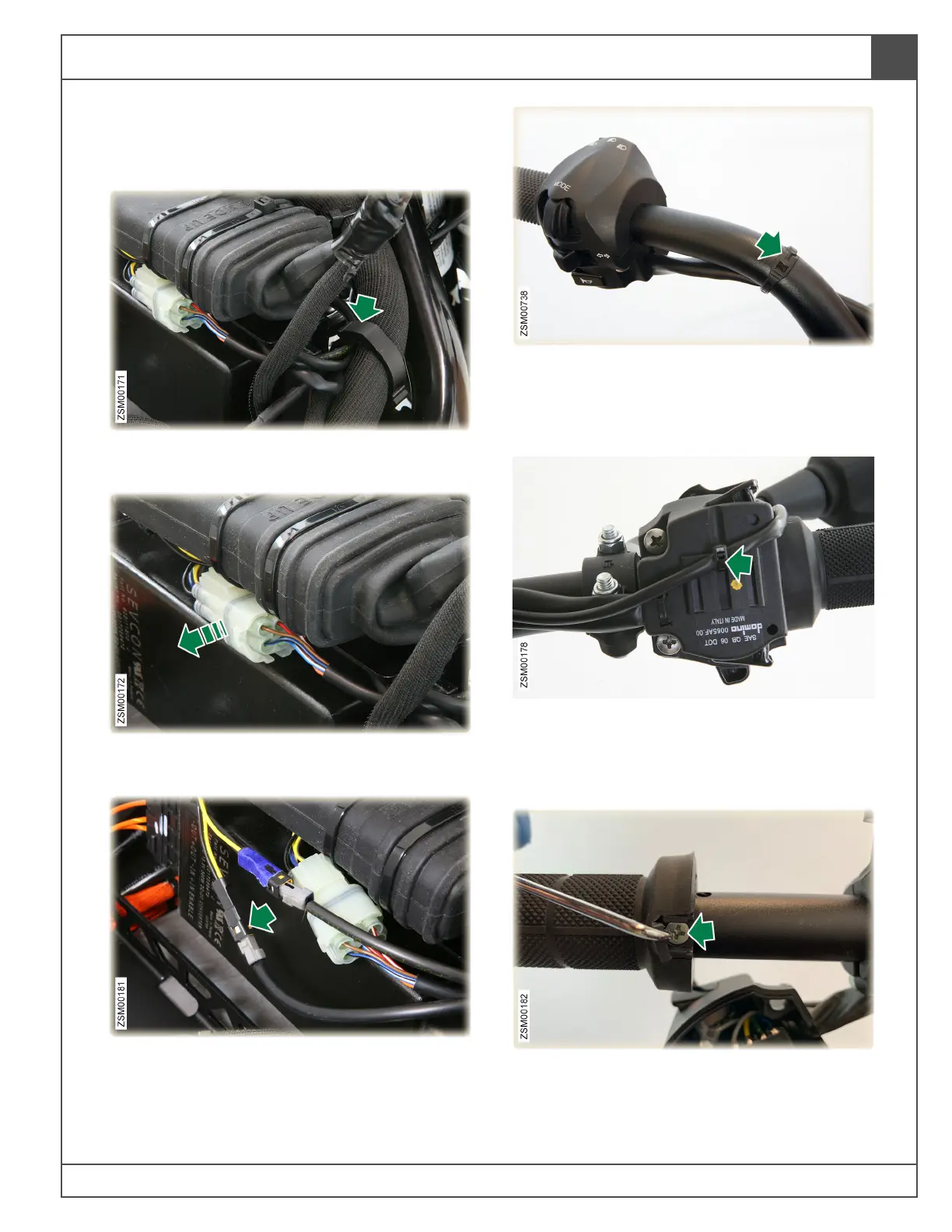

15. Unhook retaining clip to release tension on
harnesses.
16. Slide key switch harness connector out to gain
access to heated grip harness connectors.
17. Disconnect heated grip harness connector.
Note: Label/mark connector if you’re going to
disconnect both connectors.
18. Cut cable tie securing mode switch harness to
the left side of the handlebar.
Note: Replace cable tie during the installation
process.
19. Cut cable tie securing left heated grip harness
to the bottom of the mode switch assembly.
Note: Replace cable tie during the installation
process.
20. Remove bolt securing the left heated grip to
the handlebar. Tool: #2 Phillips screwdriver.
