70-34 Kickstand Switch
Electrical
70

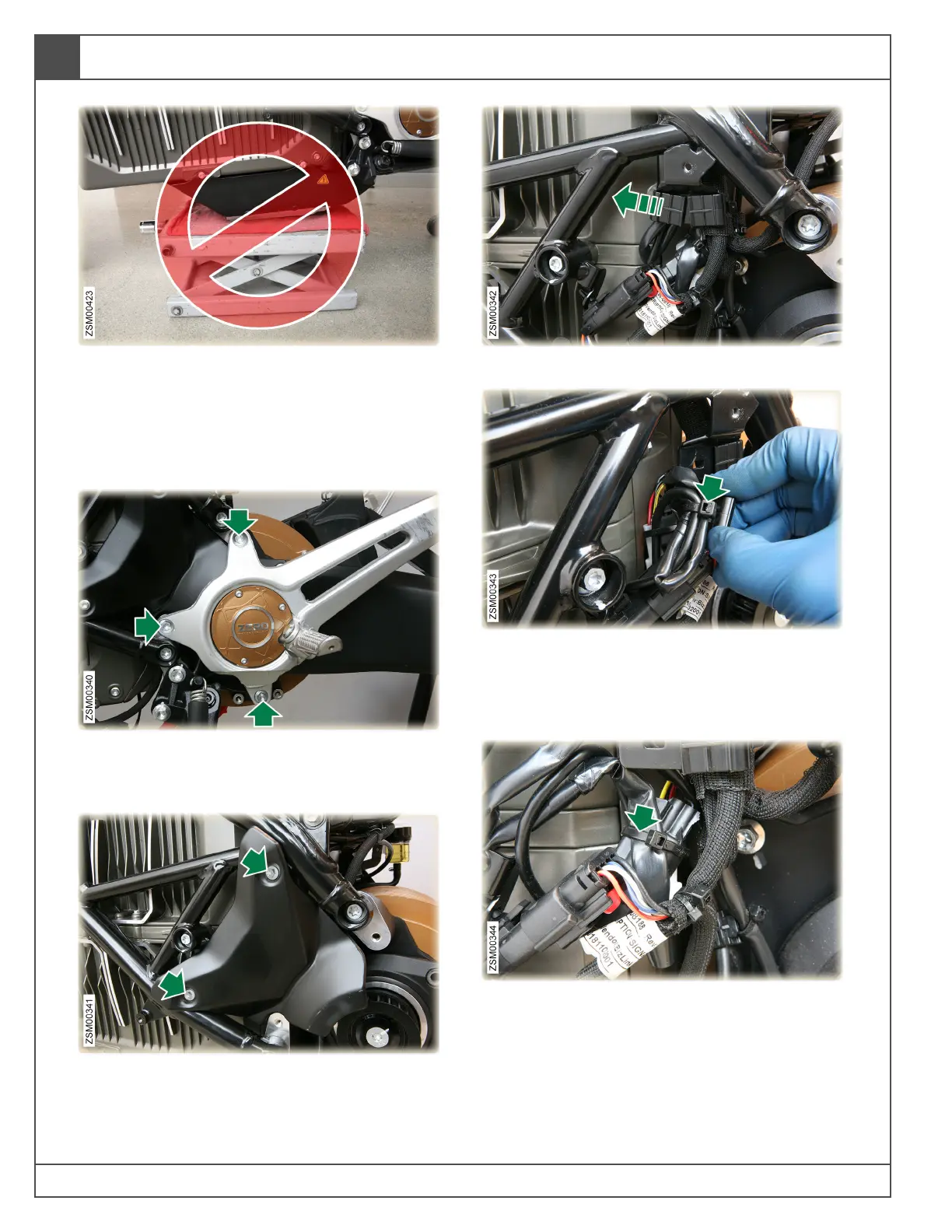

4. DO NOT LIFT THE MOTORCYLE BY
JACKING UP THE CONTROLLER! DO NOT
SUPPORT THE WEIGHT OF THE
MOTORCYCLE BY SUPPORTING THE
CONTROLLER! Doing so, will damage the
controller and other components.
5. Remove bolts (x3) securing the left foot peg
bracket to the left doubler plate. Tool: T40.
Torque: 20 lb-ft (27 Nm).
6. Remove bolts (x2) securing the heel guard to
the frame. Tool: T25. Torque: 3.5 lb-ft (5 Nm).
7. Release harness anchor clip from the frame.
8. Cut cable tie securing the rear WSS harness
and kickstand harness to the anchor clip.
Note: Replace cable tie during the installation
process.
9. Cut cable tie securing kickstand harness to
the kickstand harness connector and the WSS
harness connector.
Note: Replace cable tie during the installation
process.
To Next Page
