Power Pack
Power Pack 20-7
20

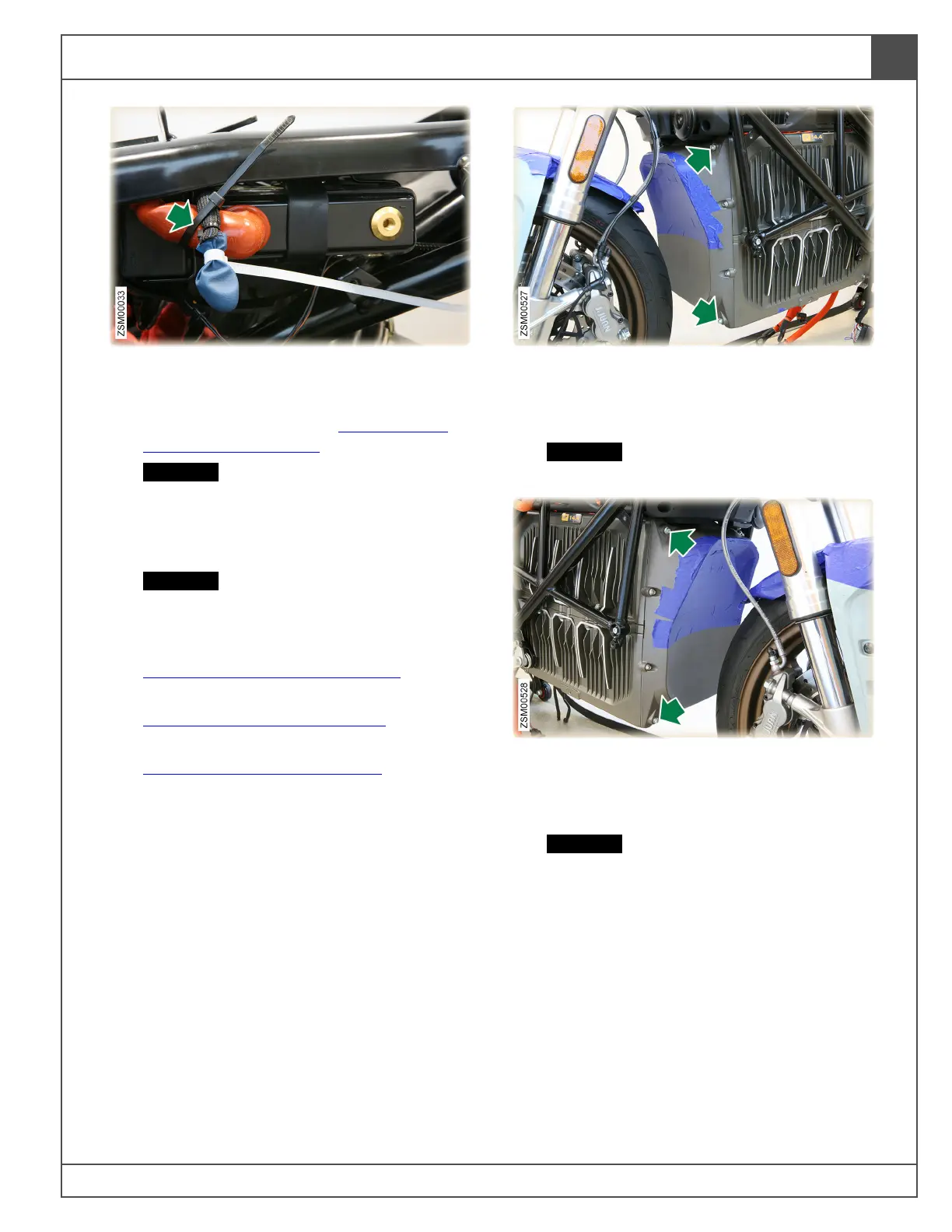

4. Unbolt the negative battery terminal eyelet.
Cover eyelet with insulating material. Use
cable tie to secure negative battery wire to the
positive battery cable. See 12 Volt Battery
(Disconnect), page 70.3.
CAUTION: Cover/protect battery terminal
eyelet to reduce the risk of accidentally
contacting the negative battery terminal,
which can inadvertently power up the
12 volt system and damage components.
CAUTION: Secure battery terminal wire to
reduce the risk of arcing and damaging
electrical components.
5. Remove headlight upper fairing. See
Headlight Upper Fairing, page 60.2.
6. Remove left and right outer side fairings. See
Side Fairings (Outer), page 60.14.
7. Remove left and right inner side fairings. See
Side Fairings (Inner), page 60.19.
8. Sparingly use canned air to remove dirt and
debris from around the BMS harness
connector before disconnecting it.
9. Remove bolts (x2) securing the corners of the
front cover to the left side of the power pack.
Bolt: M5x30. Tool: T20. Torque: 18 in-lb
(2.3 Nm).
CAUTION: Be very careful with the bolt
lengths during installation.
10. Remove bolts (x2) securing the corners of the
front cover to the right side of the power pack.
Bolt: M5x30. Tool: T20. Torque: 18 in-lb
(2.3 Nm).
CAUTION: Be very careful with the bolt
lengths during installation.
