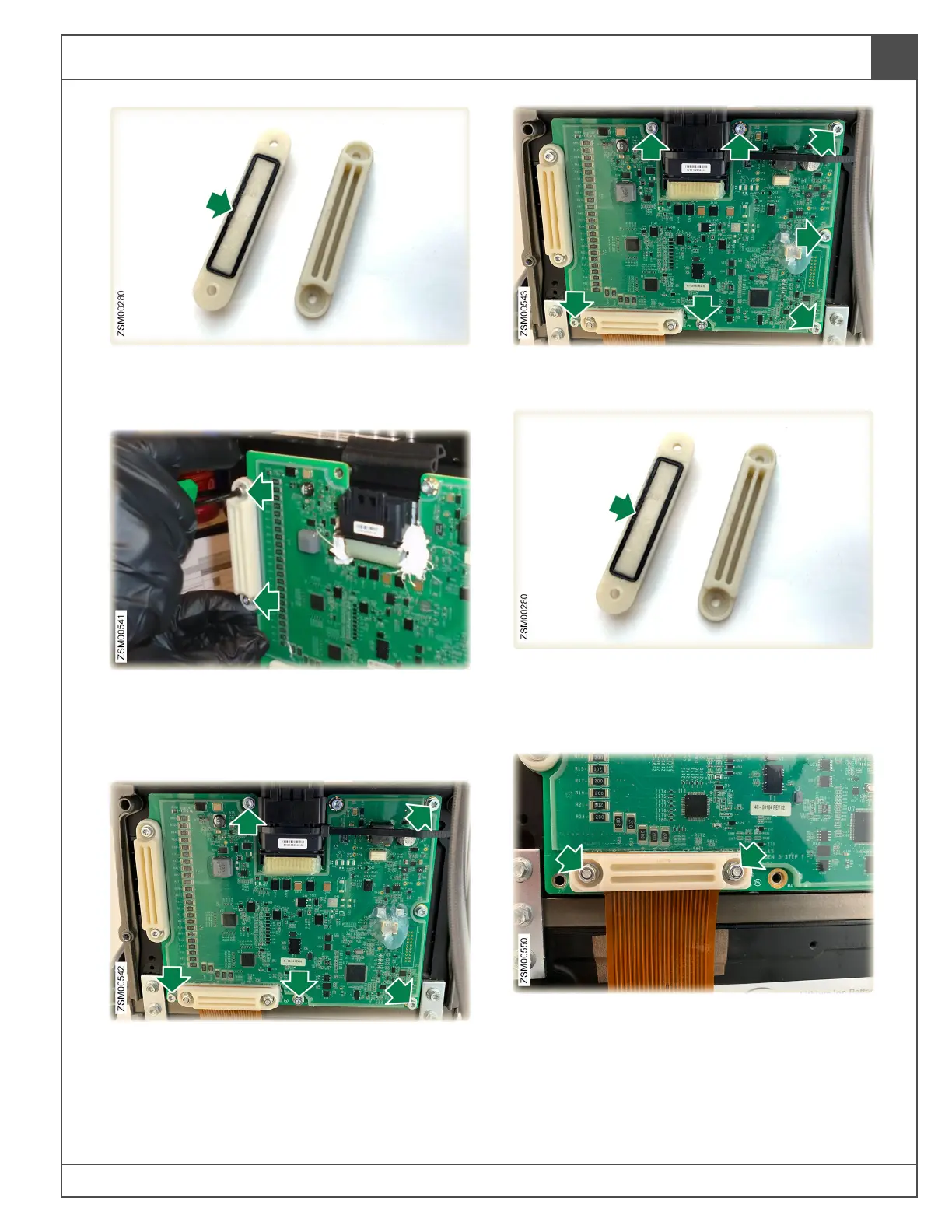

8. Clean debris from header clamps, gaskets,
and gasket surface. Re-grease gasket
surfaces with CP70.
9. Begin to fasten the BMS header clamp bolts
(x2) with flat washers (x2). Only install bolts
two turns.
Note: Do not tighten bolts yet.
10. Install the last five bolts securing the BMS.
Bolt: M4x16. Tool: T20. Torque: 12 in-lb
(1.36 Nm).
11. Torque all seven bolts securing the BMS. Bolt:
M4x16. Tool: T20. Torque: 12 in-lb (1.36 Nm).
12. If the BMS flex ribbon is not bonded to the
BMS, clean debris from header clamps,
gaskets, and gasket surface. Re-grease
gasket surfaces with CP70.
13. If BMS flex ribbon header clamp is not bonded
to the BMS circuit board, fasten the header
clamp nuts (x2) with flat washers (x2). Tool:
7mm socket.
