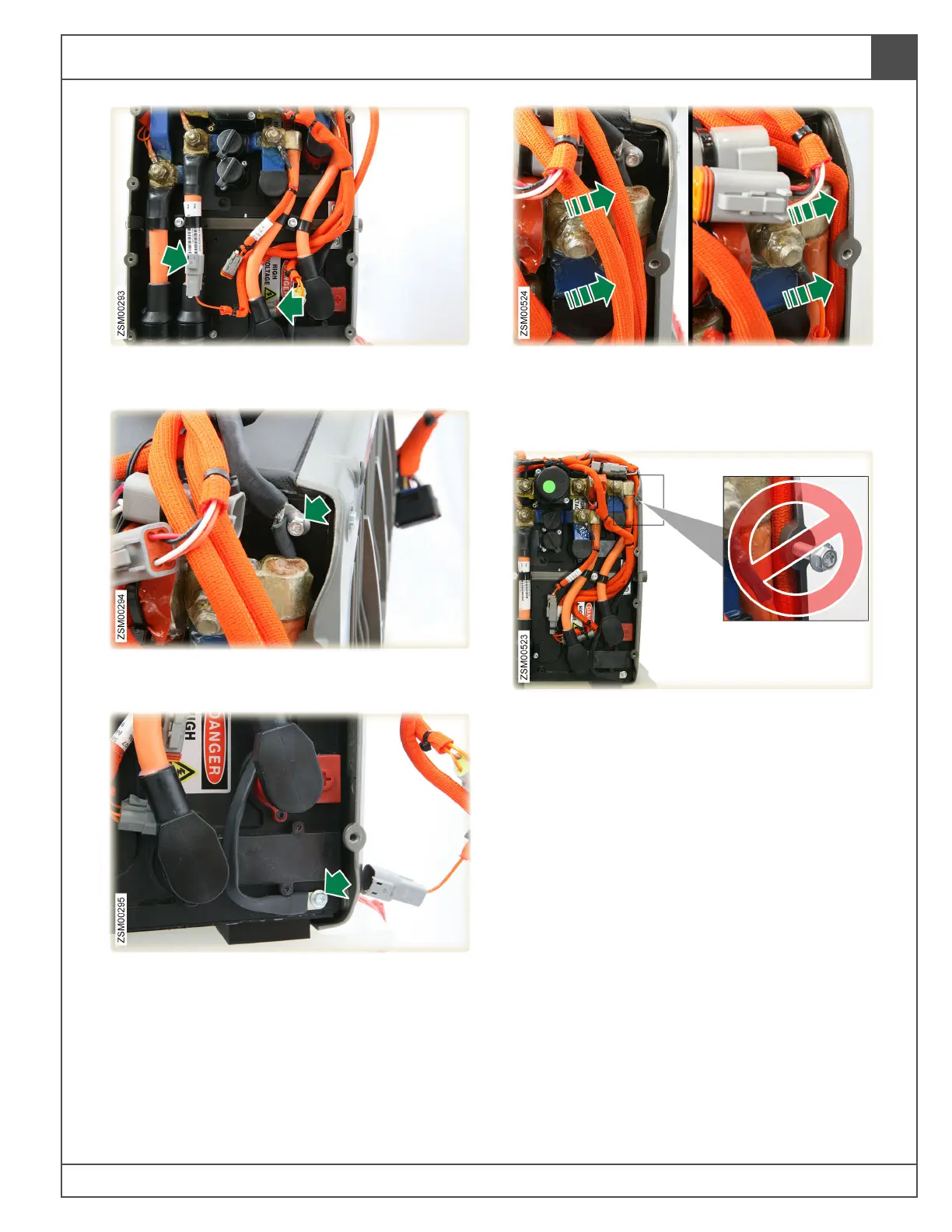

23. Maneuver both signal wire harnesses out from
behind the positive HV battery cable.
24. Remove bolt securing ground strap to upper
battery pack. Tool: T25
25. Remove bolt securing ground strap to lower
battery pack. Tool: T25
26. Remove power pack battery signal harness.
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
2. Maneuver both (B+ and B-) orange-sheathed
signal harnesses between the B+ high voltage
battery wire and the power pack heat sink
skin.
3. When installing the rear cover, only use proper
length bolt in the location shown. Bolt: M5x16.
WARNING! Installing a bolt longer than
16mm will cut through the insulation of the
high voltage wires and cause damage to the
components and possible injury.
