20-18 Power Pack
Power Pack
20

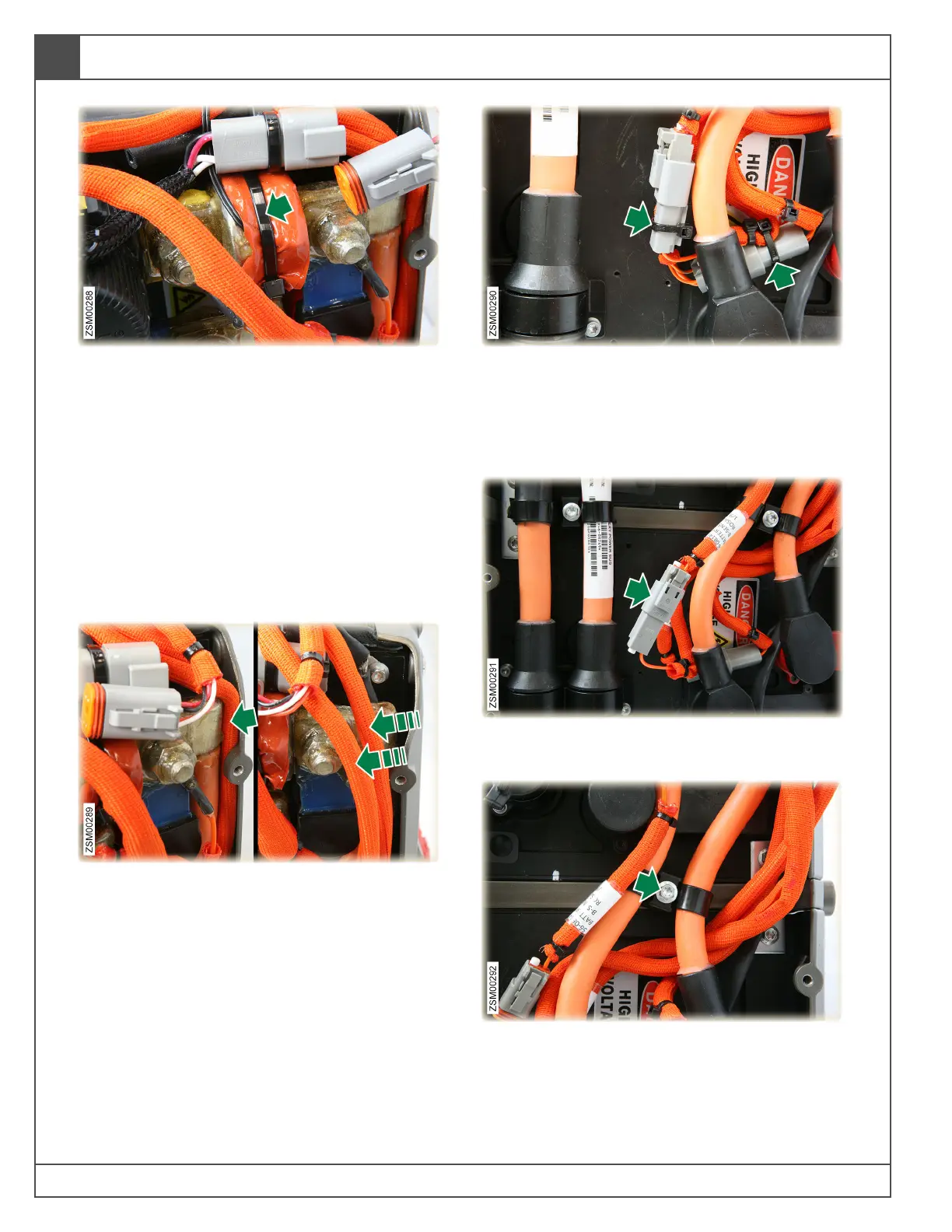

16. Cut cable tie securing the self amalgamating
tape (PN: 81-08088) and bead type thermistor
to the contactor fuse.
Note: Replace cable tie during the installation
process.
17. Remove self amalgamating tape (PN:
81-08088) securing bead type thermistor to
the contactor fuse.
Note: Replace self amalgamating tape during
the installation process.
18. Release bead type thermistor.
19. Release orange sheathed harnesses (x2) from
between the B+ buss and upper right heat sink
skin.
20. Cut cable ties (x2) securing Battery Signal B-
Sense Line to Battery Signal B+ Sense Line
harness.
Note: Replace cable tie during the installation
process.
21. Disconnect battery signal B+ Sense Line grey
harness connector.
22. Remove bolt securing HV cable retainer. Tool:
T25. Torque: 28 in-lb (3.16 Nm).
