Power Pack
Power Pack 20-17
20

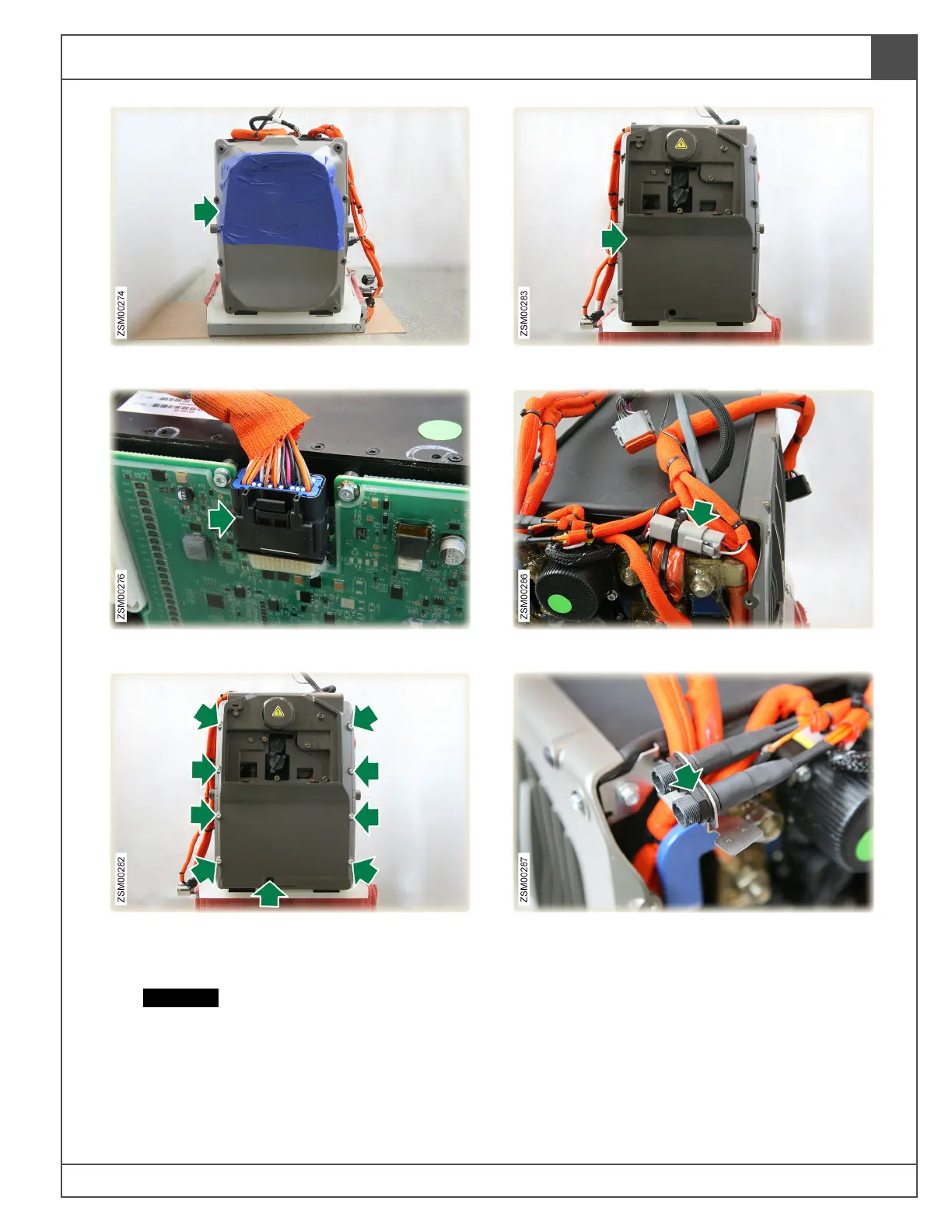

10. Remove front cover.
11. Disconnect BMS signal harness connector.
12. Remove bolts (x9) securing rear cover to the
power pack. Bolt: M5x16. Tool: T20. Torque:
18 in-lb (2.3 Nm).
CAUTION: Be very careful with the bolt
lengths during installation. Accidentally
installing the incorrect bolts in the incorrect
locations will damage your power pack.
13. Remove the power pack rear cover.
14. Disconnect contactor harness connector.
15. Remove nut securing the MBB (Main Bike
Board)/Contactor fuse holder to the high
voltage fuse bracket and capture plastic
washer. Tool: 14mm socket. Torque: Hand
To Next Page
