20-26 Power Pack
Power Pack
20

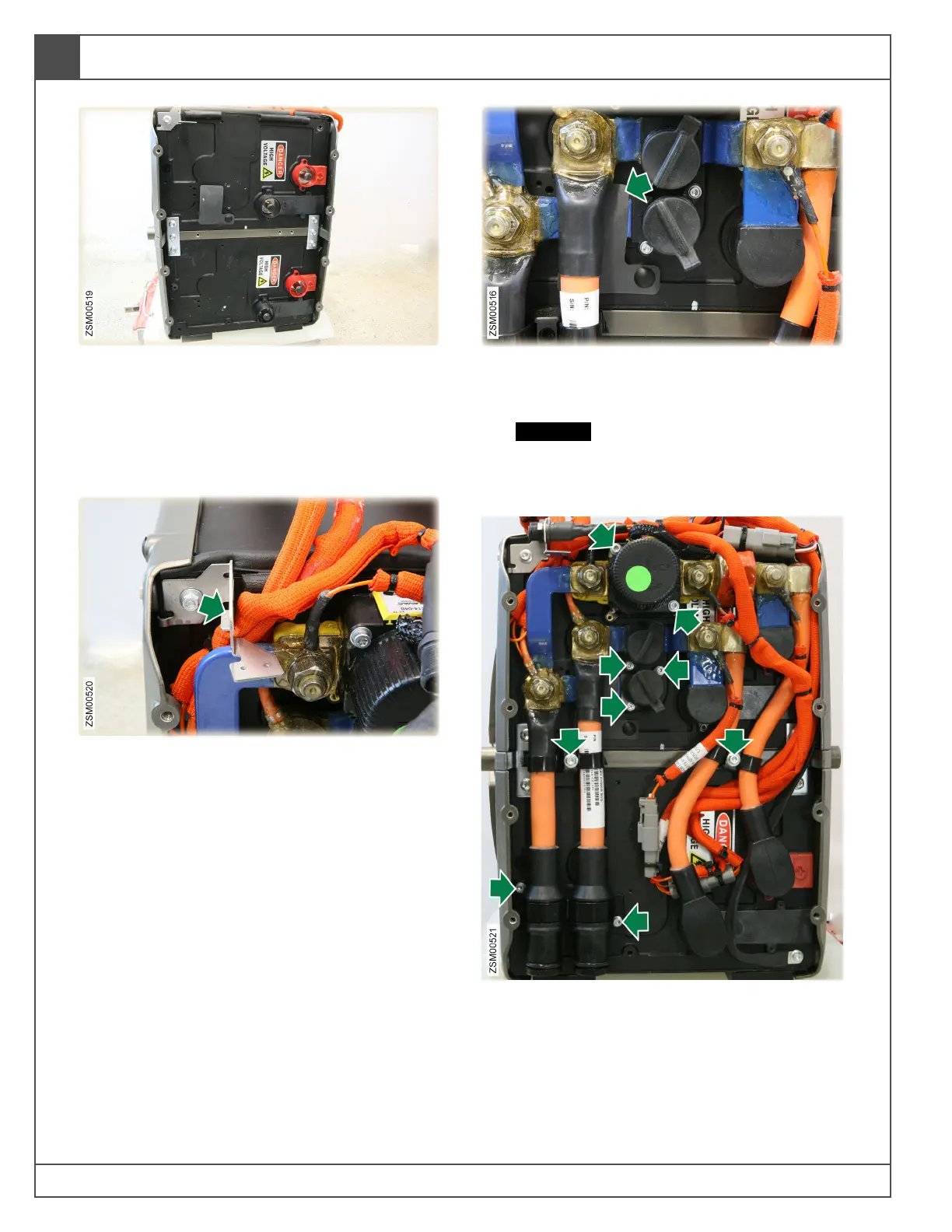

38. Remove the accessory power buss from the
power pack.
Installation
1. Installation is the reverse of the removal
procedure, with the exception of the following:
2. Before installing the accessory power buss,
make sure the orange-sheathed wires are
routed behind the bus and under the fuse
bracket (see arrow).
3. While installing the accessory power buss,
make sure the plastic shield is placed between
the B+ and B- high voltage accessories.
CAUTION: The plastic shield protects the
high voltage components from each other
and it is very important that it is installed
properly (as shown) upon reassembly.
4. Leave all securing bolts loose until all the bolts
have been installed, then tighten all bolts to
their specified torque.
