Power Pack
Power Pack 20-25
20
Note: Star washer is located between ground
strap and battery.

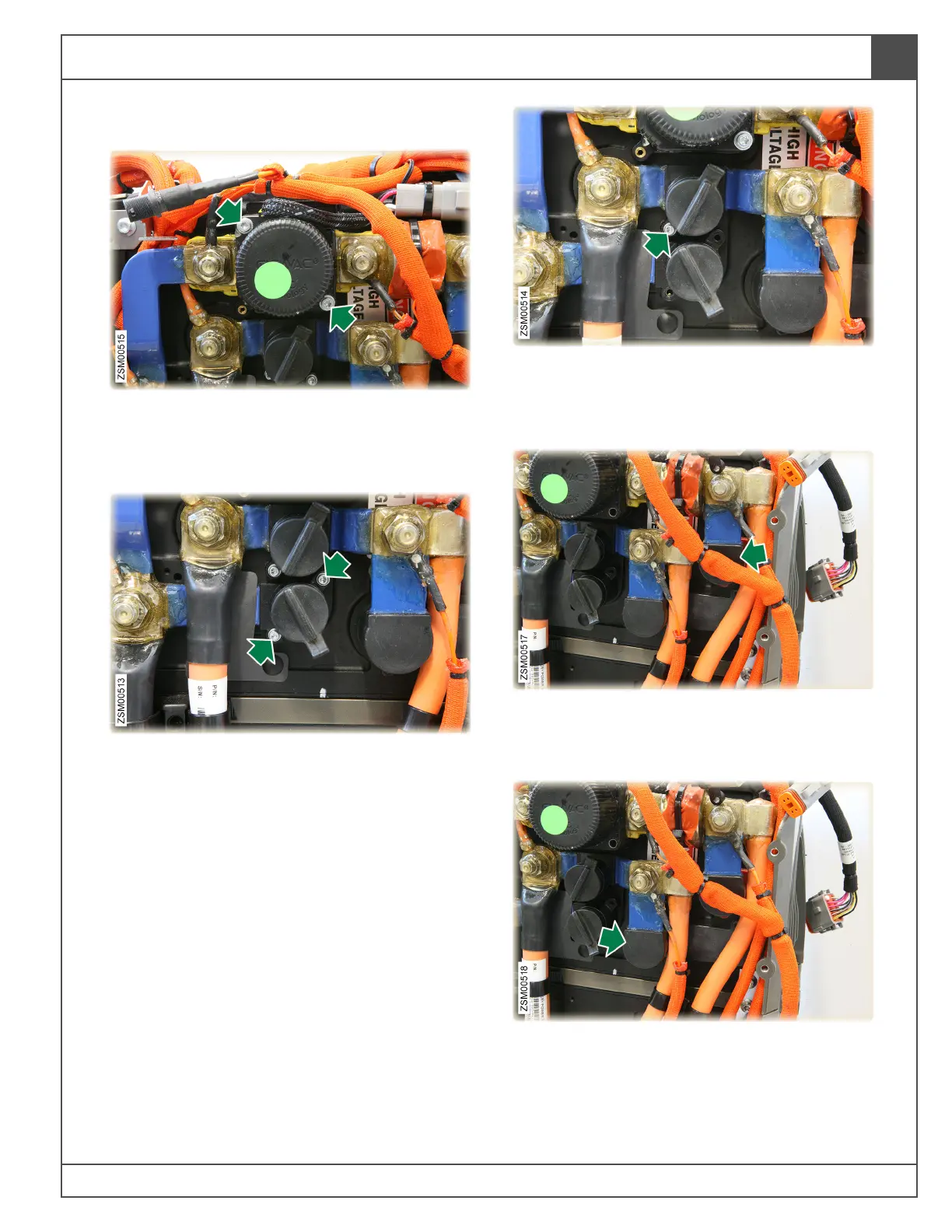

33. Remove bolts (x2) securing contactor to upper
battery cell. Collect flat washers (x2) and
contactor shim (plastic). Bolt: M4x40. Tool:
T20. Torque: 18 in-lb (2.03 Nm).
34. Remove bolts (x2) securing B+ accessory
radsock to upper battery cell and collect flat
washers (x2). Bolt: M3x16. Tool: 2.5mm hex
wrench. Torque: 12 in-lb (1.36 Nm).
35. Remove bolt securing B- accessory radsock to
upper battery cell and collect flat washer. Bolt:
M3x16. Tool: 2.5mm hex wrench. Torque:
12 in-lb (1.36 Nm).
36. Remove B+ radsock from upper battery cell.
Note: Wiggle radsock connector while pulling
as necessary.
37. Remove B- radsock from upper battery cell.
Note: Wiggle radsock connector while pulling
as necessary.
