20-24 Power Pack
Power Pack
20
Note: Replace self amalgamating tape during
the installation process.

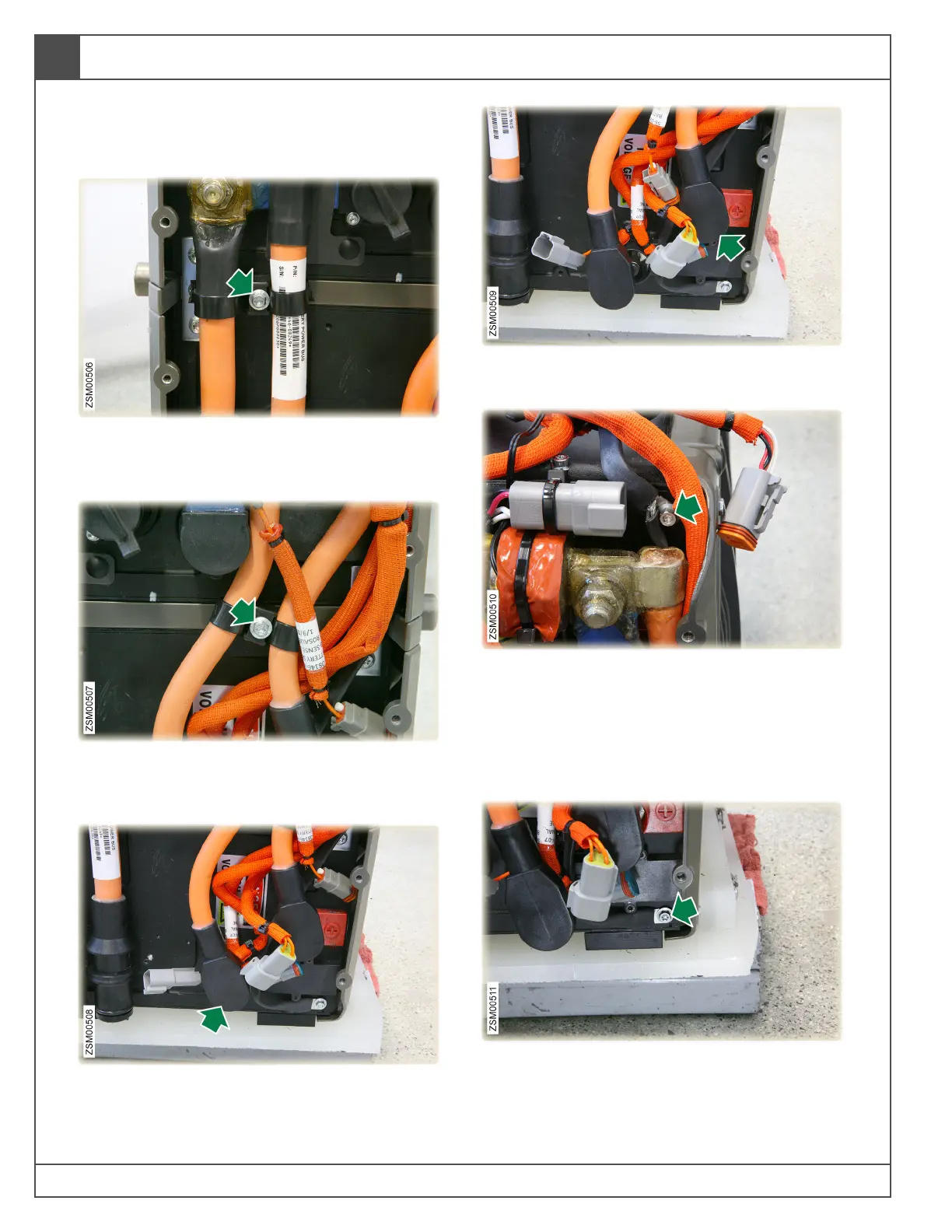

26. Release bead type thermistor.
27. Remove bolt securing high voltage wire clamp
to power pack. Tool: T25. Torque: 28 in-lb
(3.16 Nm).
28. Remove bolt securing high voltage wire clamp
to power pack. Tool: T25. Torque: 28 in-lb
(3.16 Nm).
29. Disconnect B- radsock connector from the
lower battery cell.
30. Disconnect B+ radsock connector from the
lower battery cell.
31. Remove bolt securing signal harness ground
strap to upper battery cell and collect star
washer. Bolt: M5x8. Tool: T25. Torque: 24 in-lb
(2.71 Nm).
Note: Star washer is located between ground
strap and battery.
32. Remove bolt securing signal harness ground
strap to lower battery cell and collect star
washer. Bolt: M5x8. Tool: T25. Torque: 24 in-lb
(2.71 Nm).
