Power Pack
Power Pack 20-23
20

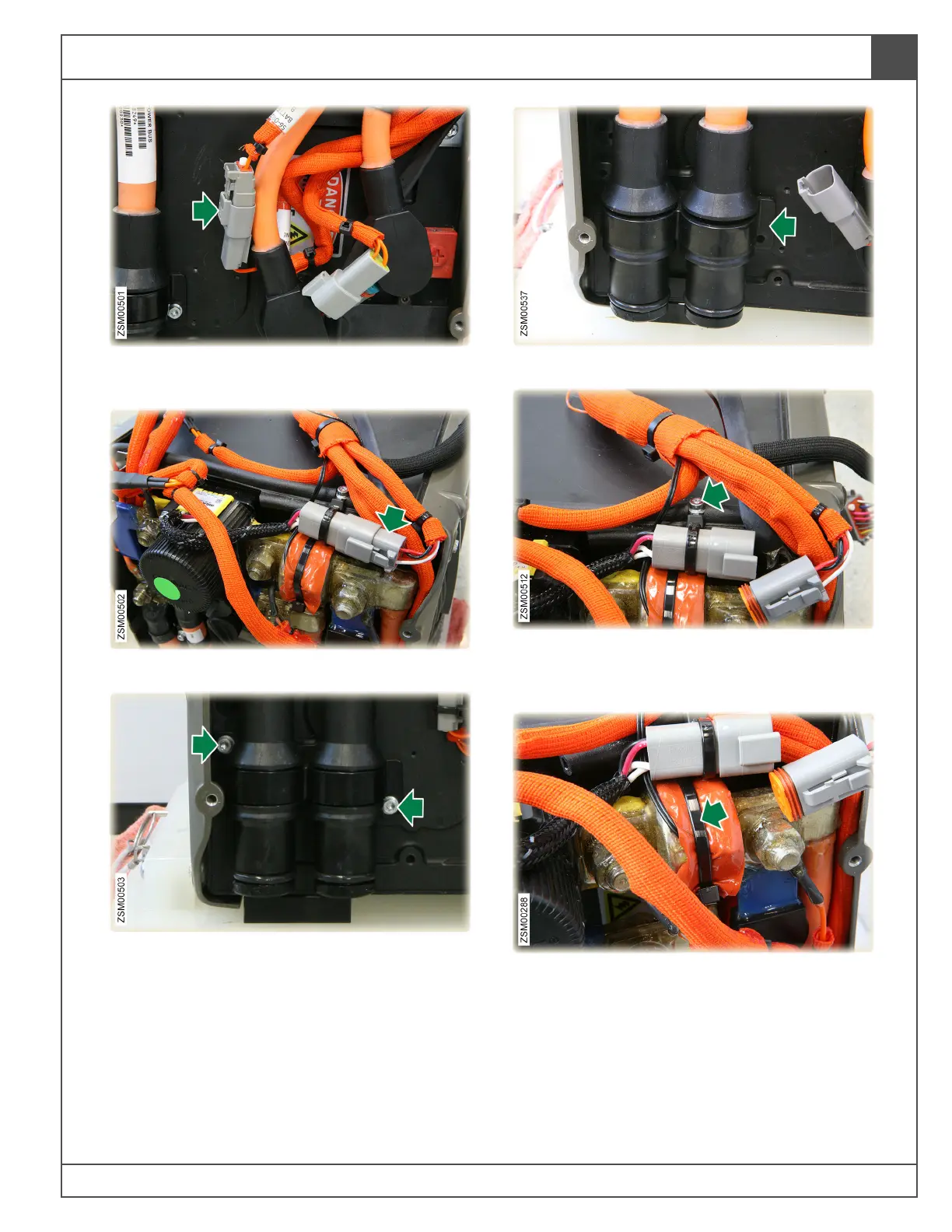

19. Disconnect Battery Signal B- Sense Line
harness connector.
20. Disconnect contactor harness connector.
21. Remove bolts (x2) securing battery output
radsock connector clamp to power pack and
collect flat washers (x2). Bolt: M4x10. Tool:
T20. Torque: 12 in-lb (1.36 Nm).
22. Remove radsock connector clamp.
23. Remove bolt securing cable tie to top of power
pack. Bolt: M4x16. Tool: T20. Torque: 18 in-lb
(2.03 Nm).
24. Cut cable tie securing the self amalgamating
tape (PN: 81-08088) and bead type thermistor
to the contactor fuse.
Note: Replace cable tie during the installation
process.
25. Remove self amalgamating tape securing
bead type thermistor to the contactor fuse.
