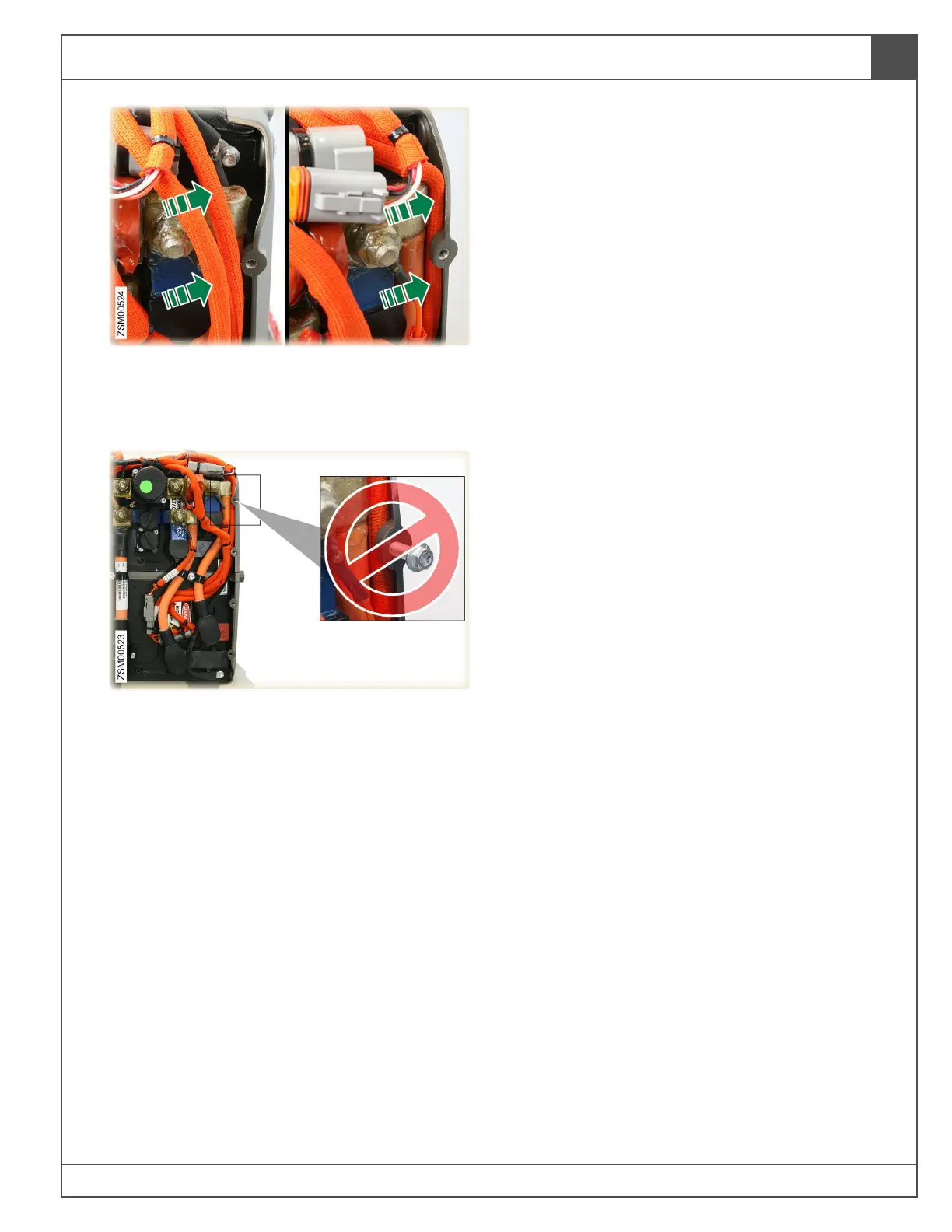

5. Maneuver both (B+ and B-) orange-sheathed
signal harnesses between the B+ high voltage
battery wire and the power pack heat sink
skin.
6. When installing the rear cover, only use proper
length bolt in the location shown. Bolt: M5x16.
WARNING! Installing a bolt longer than
16mm will cut through the insulation of the
high voltage wires and cause damage to the
components and possible injury.
