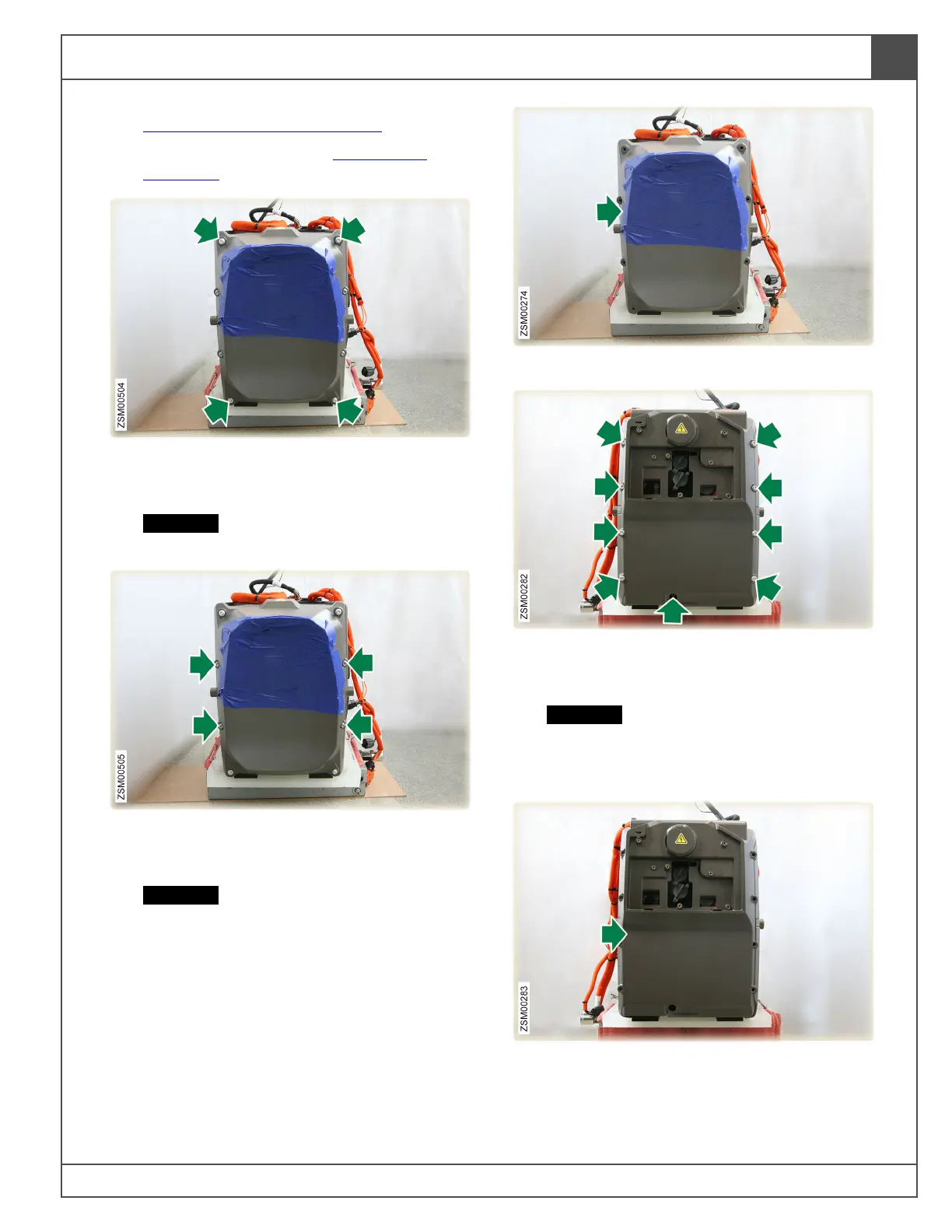

6. Remove left and right inner side fairings. See
Side Fairings (Inner), page 60.19.
7. Remove power pack. See Power Pack,
page 20.1.
8. Remove bolts (x4) securing the four corners of
the front cover to the power pack. Bolt:
M5x30. Tool: T20. Torque: 18 in-lb (2.3 Nm).
CAUTION: Be very careful with the bolt
lengths during installation.
9. Remove bolts (x4) securing center of the front
cover to the power pack. Bolt: M5x10. Tool:
T20. Torque: 18 in-lb (2.3 Nm).
CAUTION: Be very careful with the bolt
lengths during installation.
10. Remove front cover.
11. Remove bolts (x9) securing rear cover to the
power pack. Tool: T20. Torque: 18 in-lb
(2.3 Nm).
CAUTION: Be very careful with the bolt
lengths during installation. Accidentally
installing the incorrect bolts in the incorrect
locations will damage your power pack.
12. Remove the power pack rear cover.
