Charging System
Chargers 25-11
25

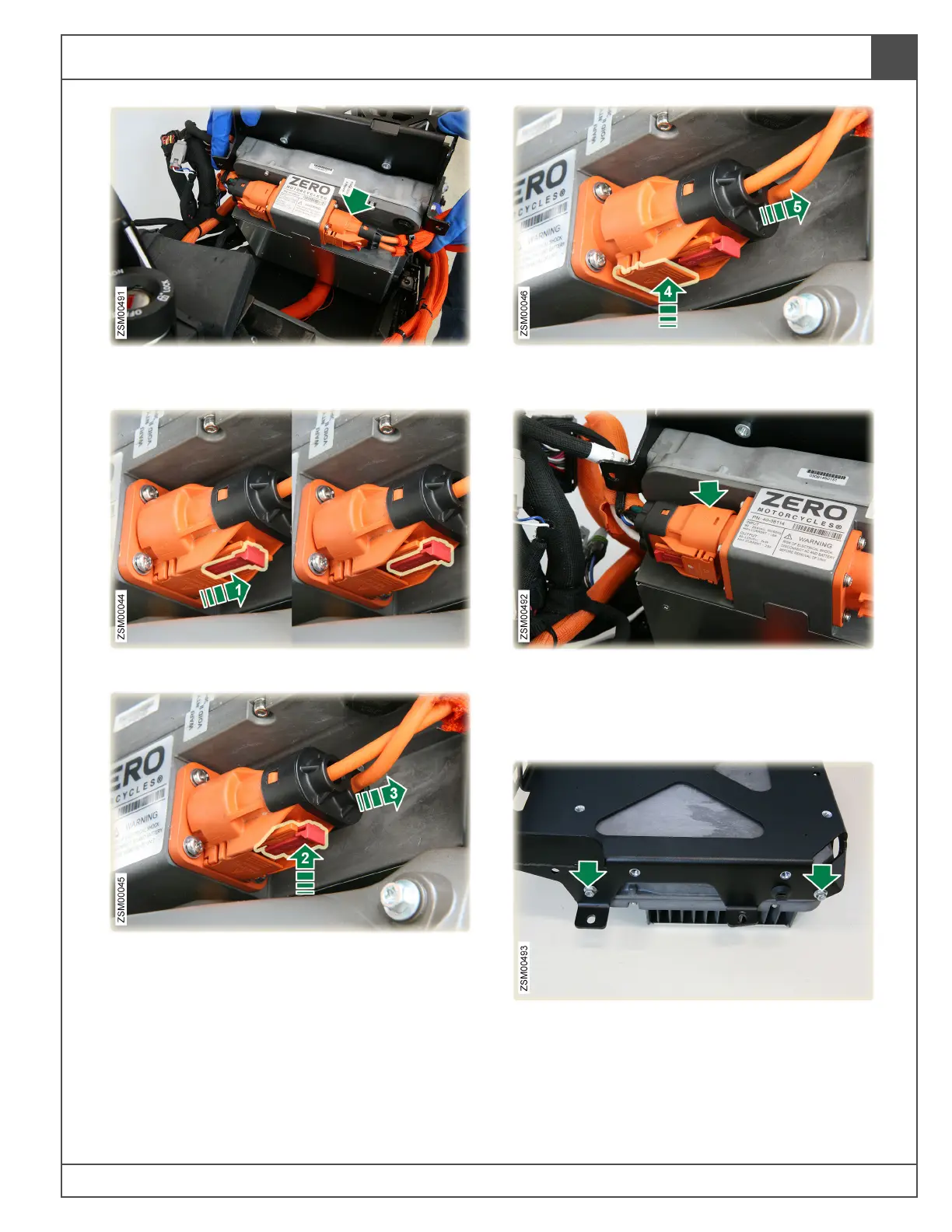

27. Disconnect left high voltage connector from
charger.
28. Slide connector lock to unlock.
29. Push tab upward to release connector and
slide.
30. Push secondary tab and disconnect
connector from charger.
31. Following the same process for disconnecting
the high voltage connector from the right side
of the charger.
32. Remove rear charger assembly.
33. Remove bolts (x2) securing rear charger to the
left side of the tank liner support bracket. Tool:
T25. Torque: 4.5 lb-ft (6 Nm).
