25-12 Chargers
Charging System
25

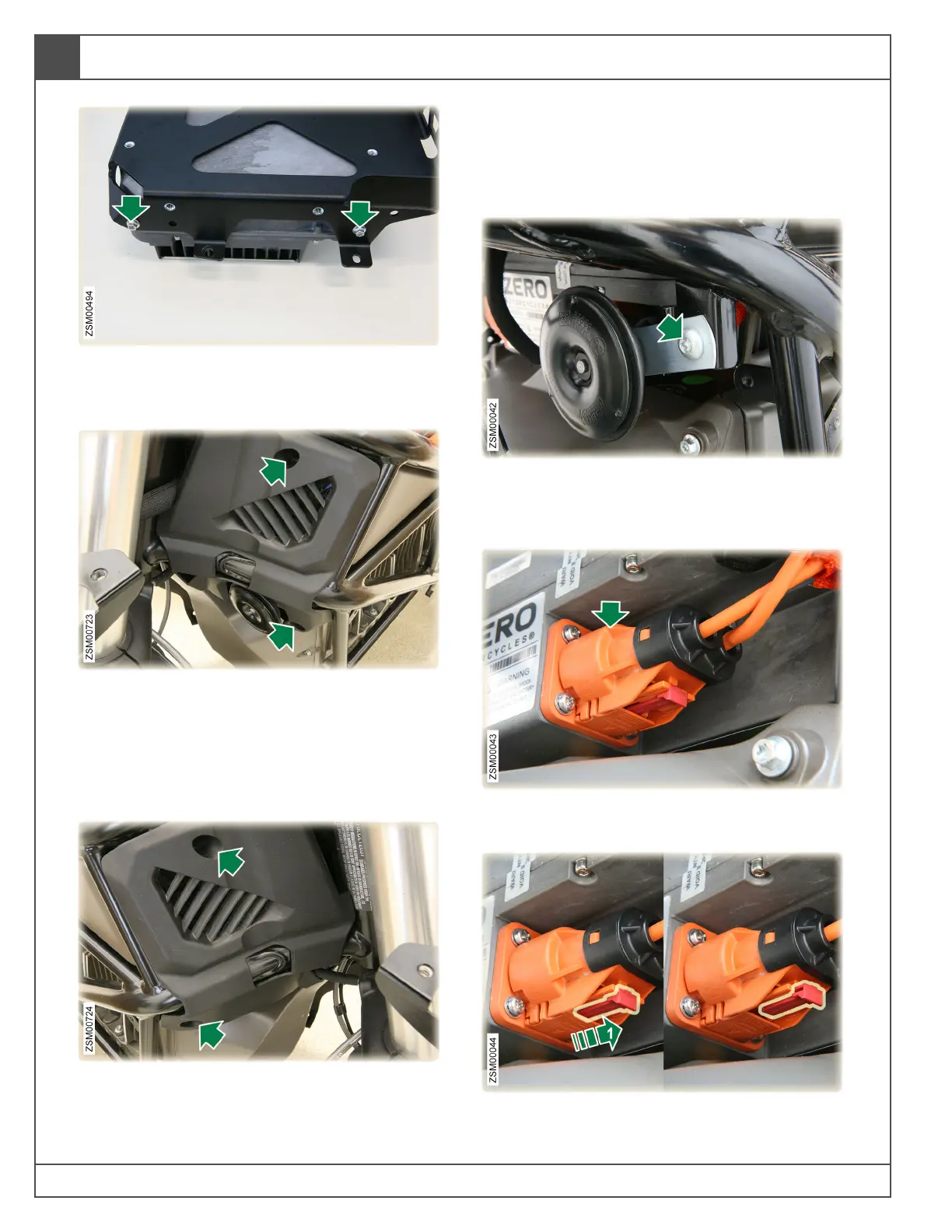

34. Remove bolts (x2) securing rear charger to the
right side of the tank liner support bracket.
Tool: T25. Torque: 4.5 lb-ft (6 Nm).
35. Remove bolts (x2) securing left side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
Note: Protect rear portion of front fender and
front closeout panel surfaces to reduce the
possibility of scratching their surfaces.
36. Remove bolts (x2) securing right side of front
closeout panel to frame. Tool: T25. Torque:
3.5 lb-ft (5 Nm).
37. Remove front closeout panel.
Note: Position front suspension straight
forward to allow access for removing front
closeout panel downward in front of power
pack.
38. Remove bolt securing horn to motorcycle
frame. Tool: T40. Torque: 8 lb-ft (11 Nm).
Note: Tie horn aside.
39. Disconnect left front high voltage connector
from charger.
40. Slide connector lock to unlock.
To Next Page
