Charging System
Chargers 25-13
25

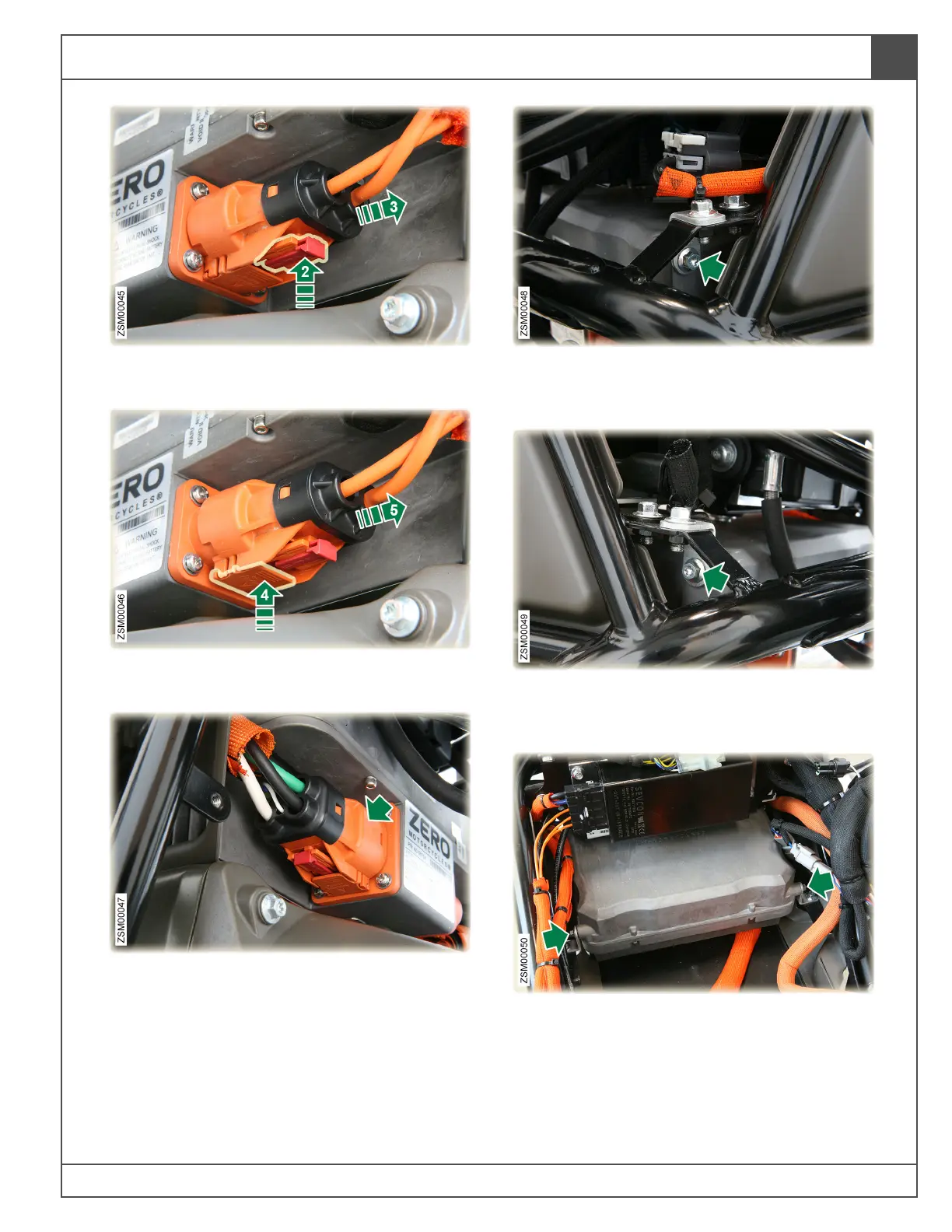

41. Push tab upward to release connector and
slide.
42. Push secondary tab and disconnect
connector from charger.
43. Following the same connector disconnecting
process, disconnect right front high voltage
connector from charger.
44. Remove bolt securing charger to left front
charger bracket. Tool: T20. Torque: 4.5 lb-ft
(6 Nm).
45. Remove bolt securing charger to right front
charger bracket. Tool: T20. Torque: 4.5 lb-ft
(6 Nm).
46. Remove bolts (x2) securing rear of charger to
rear charger brackets. Tool: 7mm wrench.
Torque: 4.5 lb-ft (6 Nm).
