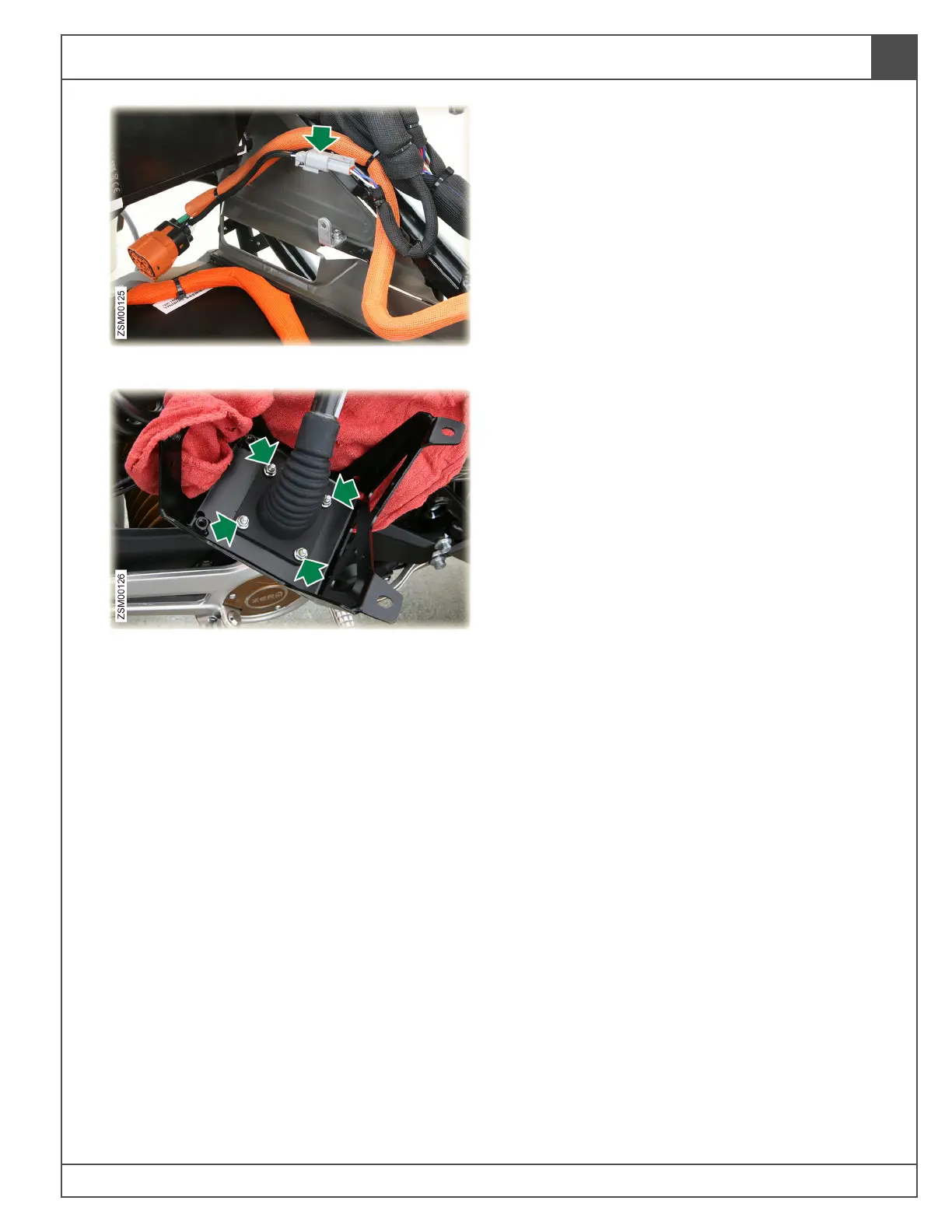

11. Disconnect grey harness connector.
12. Remove nuts (x4) and bolts (x4) securing
charge inlet to the charge port stand and
collect washers (x4). Tool: T25 & 8mm socket.
Nut Torque: 4.5 lb-ft (6 Nm).
Note: During installation, do not snug storage
liner bolts until tank is installed.
13. Remove charge inlet from the charge port
stand.
14. Remove charge inlet from the motorcycle.
Installation
1. Installation is the reverse of the removal
procedure.
