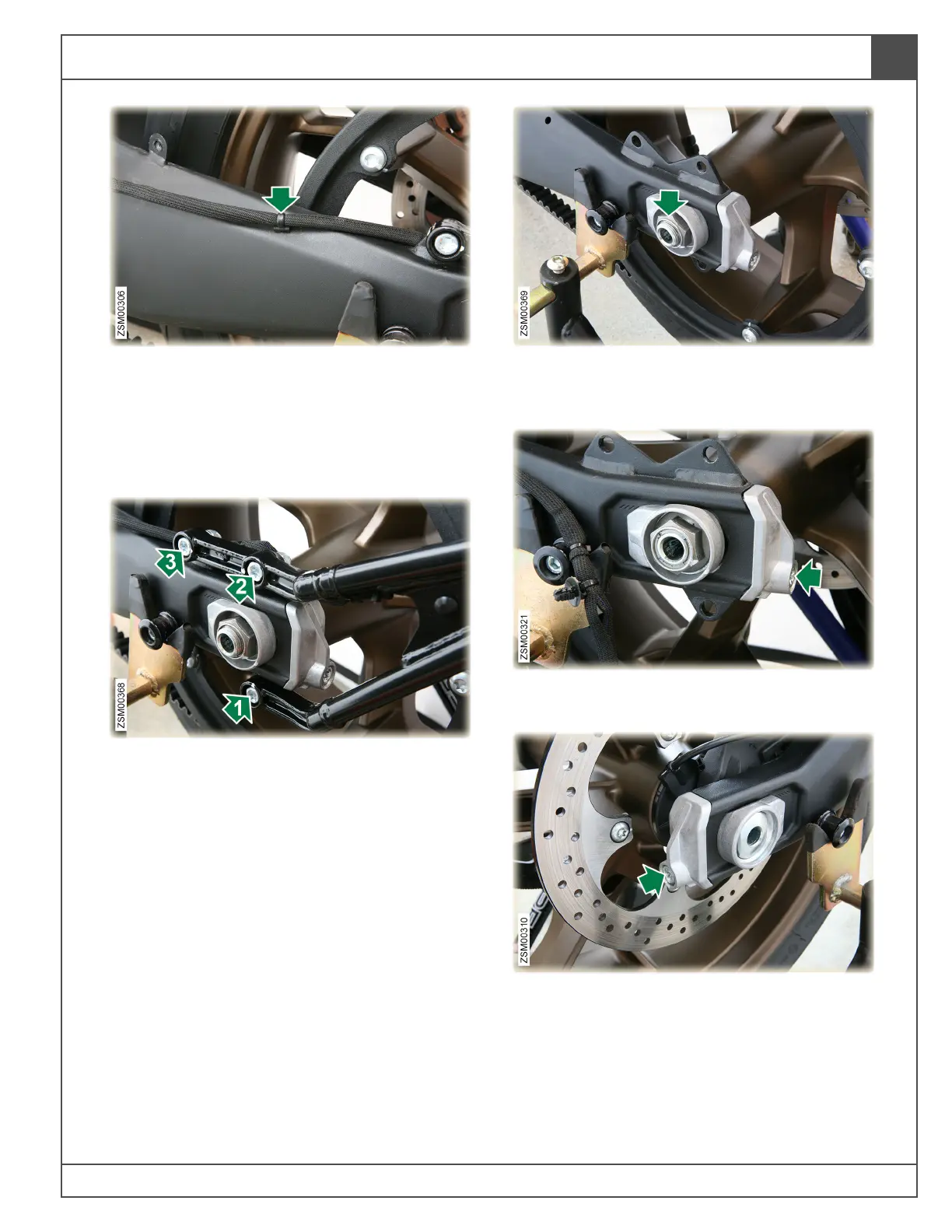

15. Release license plate harness anchor
securing the license plate light harness to the
swingarm. Tool: Non-marring trim removal/pry
tool
Note: Replace single-use harness anchor
during the installation process.
16. Remove bolts (x3) securing the rear fender
arm to the swingarm. Collect the nuts (x3) and
washers (x3). Tool: T45and 13mm socket.
Torque (in sequence shown): 25 lb-ft (34 Nm).
17. Set ROF arm (with license plate light harness
still attached) aside where it won’t get
damaged during the repair procedure.
18. Remove rear axle nut and collect the rear axle
adjuster. Tool: 27mm. Torque: 75 lb-ft (102
Nm).
19. Remove left adjuster bolt and collect the left
swingarm end cap. Tool: T45
20. Remove left adjuster bolt and collect the right
swingarm end cap. Tool: T45

Zero SR/S Specifications

General

Category	Motorcycle
Peak Power	110 hp (82 kW)
Continuous Power	54 hp (40 kW)
Torque	140 ft-lb (190 Nm)
Range (City)	161 miles (259 km)
Range (with Power Tank)	200 miles (322 km)
Top Speed (Max)	124 mph (200 km/h)
Top Speed (Sustained)	110 mph (177 km/h)
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Motor	Z-Force 75-10
Battery	ZF14.4 Lithium-ion
Range (Highway)	82 miles (132 km) at 70 mph
Seat Height	787 mm (30.9 in)
Wheelbase	1, 450 mm (57.1 in)
Front Suspension	Showa 41 mm
Rear Suspension	Showa 40mm piston, piggy-back reservoir shock
Front Brake	Dual J-Juan asymmetric piston calipers, 320 x 5 mm discs
Rear Brake	J-Juan single piston floating caliper with 240mm disc
ABS	Bosch Gen 9
Charging Time (Standard)	4.5 hours
